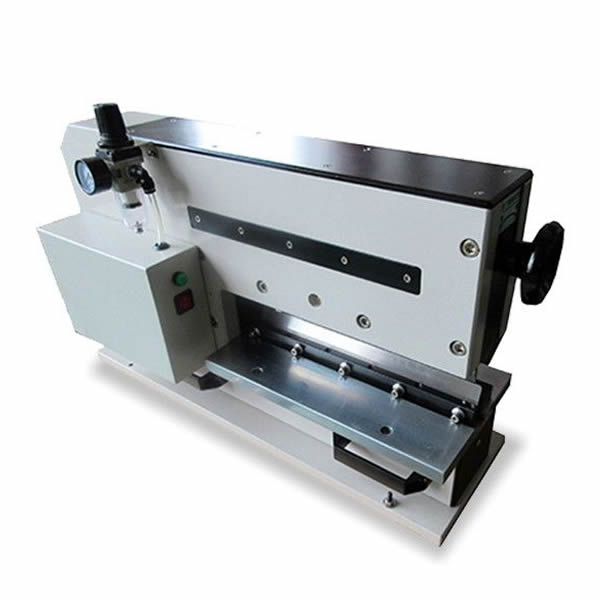

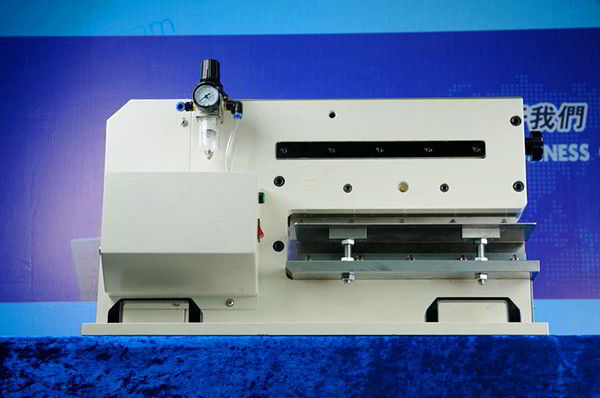

MDS-620 cuts flexible and ultra-thin PCBs clean, with no ripping or tearing, the linear rather than circular, cutting surfaces allow for faster separations without added stress.
MDS-620 Pneumatic Linear PCB Separator Feature
|
● Adjust blades to PCB score line using rotary knob. |
|
● Boards are separated without bending or breaking. |
|
● Safe for use with flexible and thin (to 0.5mm) PCBs. |
|

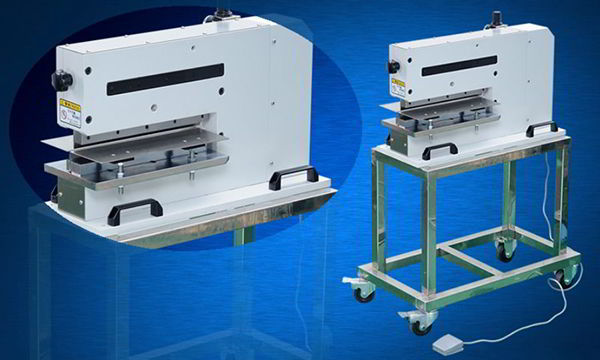

● Smooth, quiet pneumatic-powered unit with foot -pedal activation. |
|
● Wedge-shaped linear blades contour to v-groove score lines and operate in a rocking motion. |
|
● Can be used with aluminum and other substrates, including substrates with metal inner layers. |
|
MDS-620 - Specifications |
|
|
Model |
MDS-620 |
|
PCB Thickness |
0.8 mm to 3.0 mm |
|
Maximum Depaneling Length |
330 mm |
|
Maximum Component Height |
20 mm |
|
Depaneling Mode |
Pneumatic |
|
Separating Speed |
N/A |
|
Scoring Angle |
20˚ |
|
Power Supply |
220V,50HZ, 110V,50HZ(option) |
|
Starting mode |
Switch |
|
Air requirement |
0.7Mpa |
|
Product Size |
L680xW250xH450mm |
|
Net Weight |
138 kg |
