Circular blade cuts against linear blade to ensure clean, burr-free processing without board stress. Available with max. cut length of 320mm. Quick-lock blade for easy board thickness setup,the distance between upper round cutter and lower straight cutter can be adjusted precisely.
|

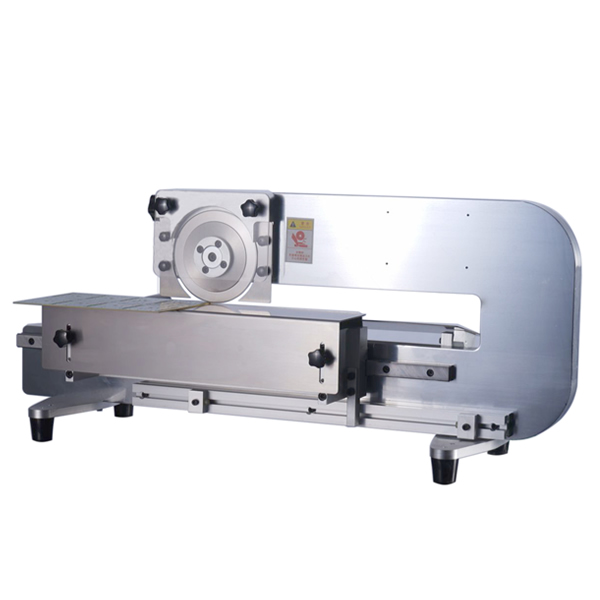

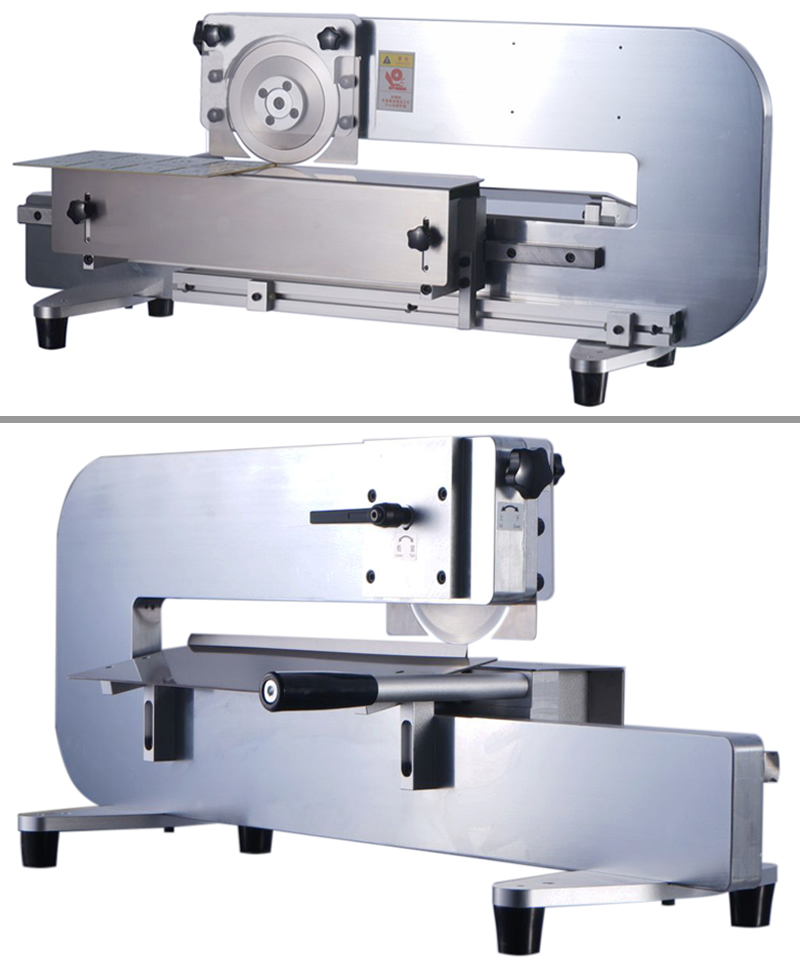

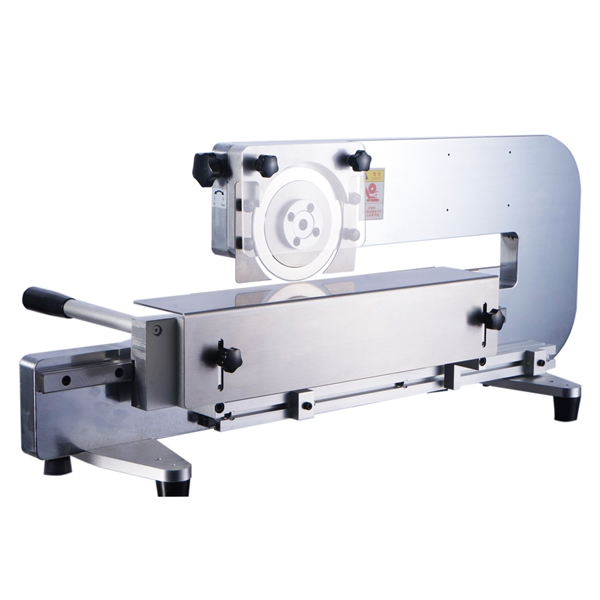

MDS-510 Manual PCB Separator Feature |
|
● Circular blade cuts against linear blade to ensure clean, burr-free processing without board stress. |
|
● Available with max. cut length of 320 mm. |
|
● Quick-lock blade for easy board thickness setup, the distance between upper round cutter and lower straight cutter can be adjusted precisely. |
|
● Back bench height can be adjusted upwards and downwards to support the PCB or tilted so that PCBs fall away from blade. |
|
● Hardened tooled steel long-life blades. |
|
MDS-510 -Specifications |
|
|
Model |
MDS-510 |
|
PCB Thickness |
0.8 mm to 3.0 mm |
|
Maximum Depaneling Length |
320 mm |
|
Top component height |
Max: 15mm |
|
Bottom component height |
0mm |
|
Depaneling Mode |
Manual |
|
Suitable material |
PCB |
|
Separating Speed |
Depend on operator |
|
Product Size |
L806x342xH341mm |
|
Net Weight |
50 kg |
Optional configuration:
◎ Circular blade and linear blade * 1set
