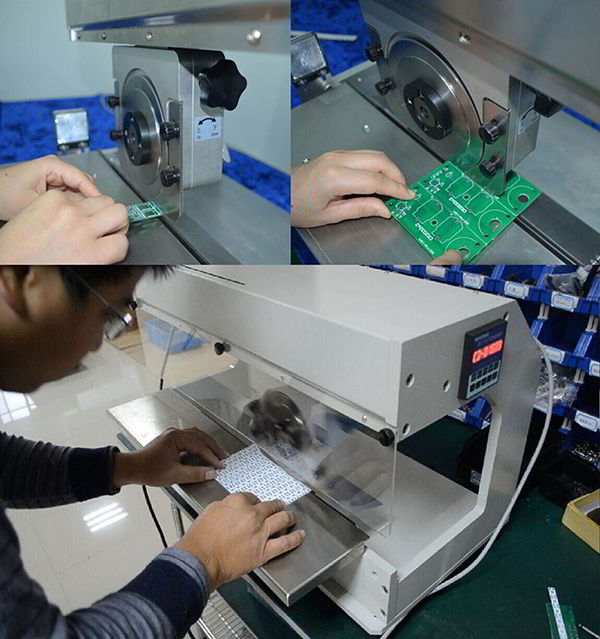

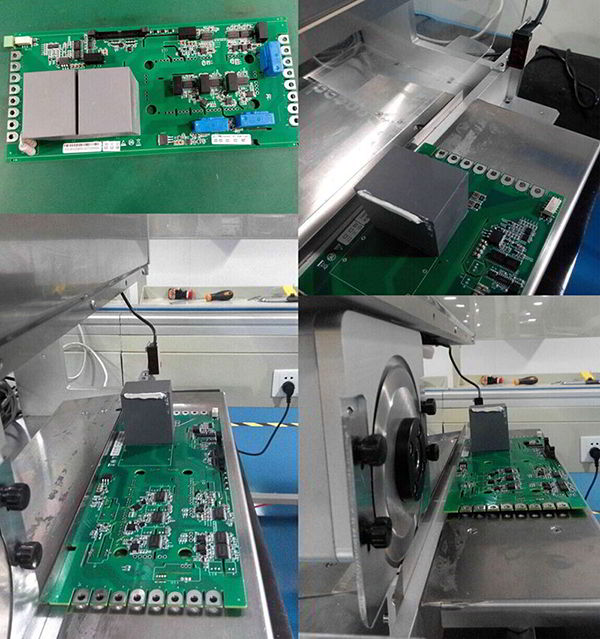

Motor-driven MDS-508-500/509-500 separates v-scored PCBs without stress to boards, components or solder joints. it is suited for medium to high-volume production, Cut length is fully programmable; programmed length is displayed on an LED readout.
MDS-508-500/509-500 Motorized PCB Separator Feature
|
● With completely independent development and controlled by micro-computer process, the machine is very accurate and stable. It can cut a single board within the length from 0 to500mm off with a cut. |
|

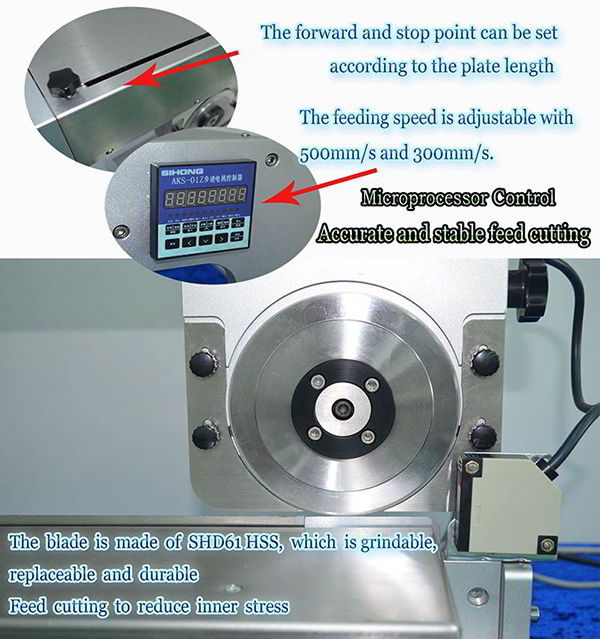

● The feeding speed is adjustable with 500mm/s and 300mm/s. If the speed is fast enough, the quality is improved for the board is cut without burrs and rough selvedge. |
|

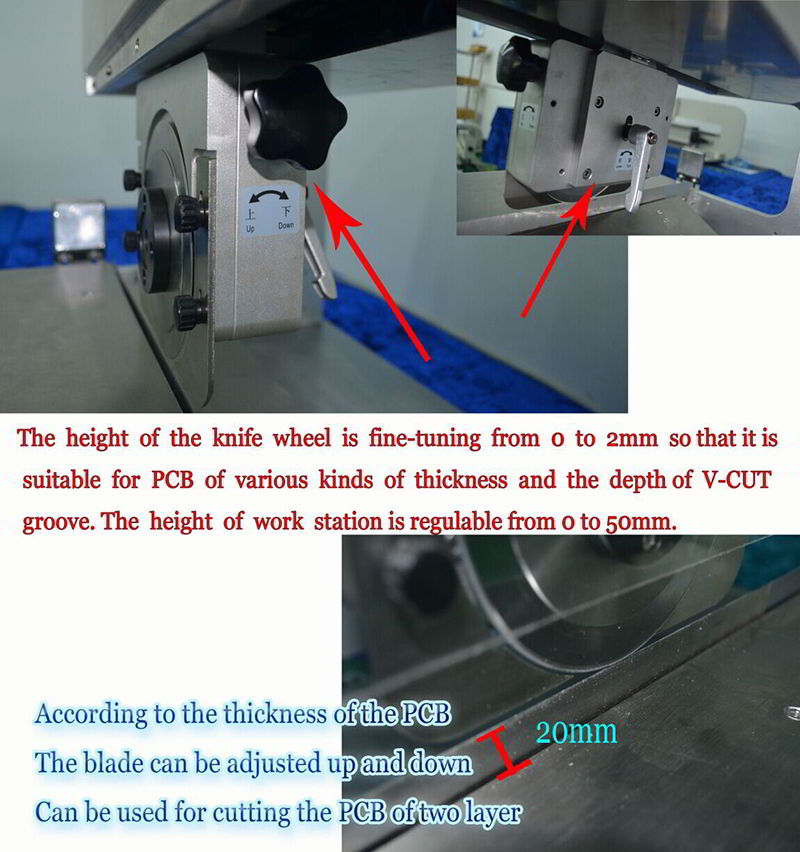

● The feed distance of the knife wheel is from 0 to 500mm(the tool length can be customized ) . The height of the knife wheel is fine-tuning from 0 to 2mm,so that it is suitable for PCB of various kinds of thickness and the depth of V-CUT groove. The height of work station is regulable from 0 to 50mm. |
|
● The forward and stop point can be set according to the plate length when feeding, the stop point for manual setting. |
|
● The tailgate depth range: unlimited. The largest plate cutting width: unlimited,the maximum cutting length: 500mm, the plate thickness: 0.25-3.5mm. The thickness between V groove: 0.25-2.0mm. |
|
● The upper and lower knives is made of imported high-speed steel material,which are durable and can be regrinded.be adjusted precisely. |
|

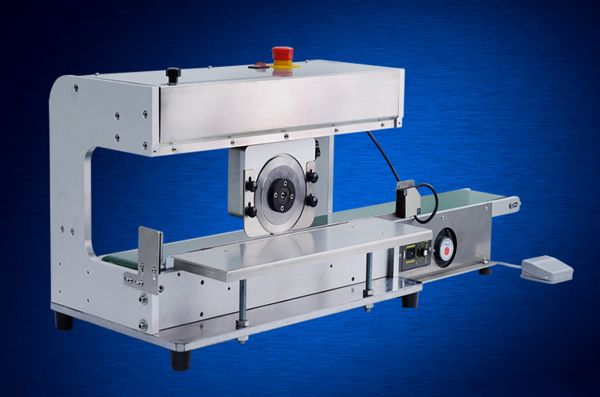

● The machine can be in supporting use of a complete set of conveyor belt,which is convenient for the cut PCB to be send out automatically. |
|
● The platform is adjustable. It is good for the product quality when lifting the platform, because it will reduce stress and will not hurt the product. |
|
● The spacing device applies to products of different size, so as to improve the work efficiency. |
|

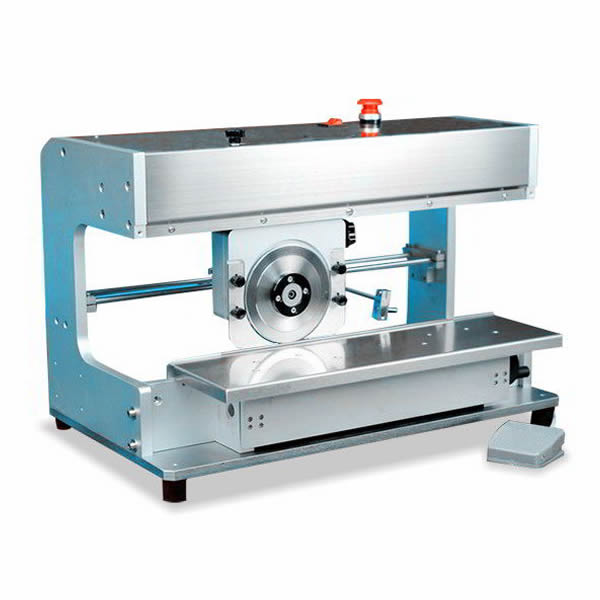

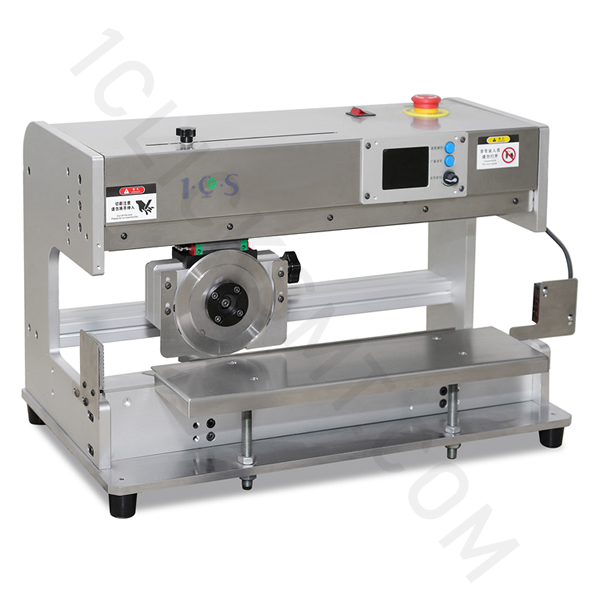

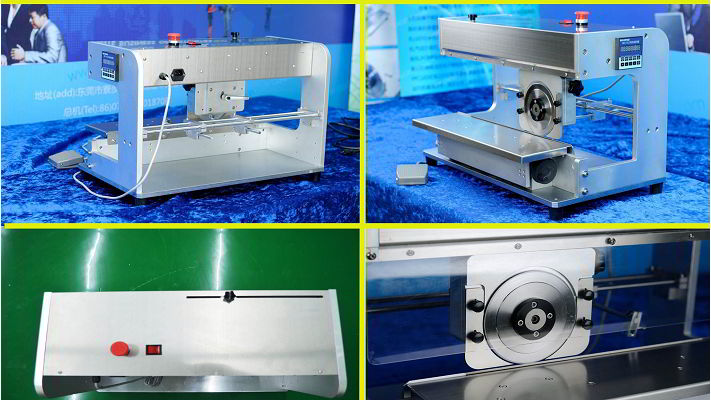

Motorized PCB Separator MDS-508,509 Specification |
||
|
Model |
MDS-508(no conveyor) | MDS-509(with conveyor) |
|
PCB Thickness |
0.6 mm to 3.5 mm |
0.6mm to 3.5mm |
|
Suitable Material |
FR4,PCB |
FR4,PCB |
|
V-cut thickness |
Max 2.0mm |
Max 2.0mm |
|
Maximum Depaneling Length |
350mm |
350 mm |
|
Depaneling Mode |
Motorized |
Motorized |
|
Start mode |
Foot Switch |
Foot Switch |
|
Minimum component distance from v-groove |
2.5mm |
2.5mm |
|
Separating Speed |
Adjustable |
Adjustable |
|
Top component height |
Max:30 mm |
Max:30mm |
|
Bottom component height |
Max:15mm |
Max:12mm |
|
Power Supply |
220V,50HZ |
220V,50HZ |
|
Power |
60W |
60W |
|
Machine Size |
L620xW400xH430mm |
L1090xW400xH430mm |
|
Machine Net Weight |
45 kg |
56kg |
Optional configuration:
◎ Circular blade and linear blade * 1set
