Hand-crank axial lead former for taped parts are easy to set up, easy to changeover and place minimal stress on components.

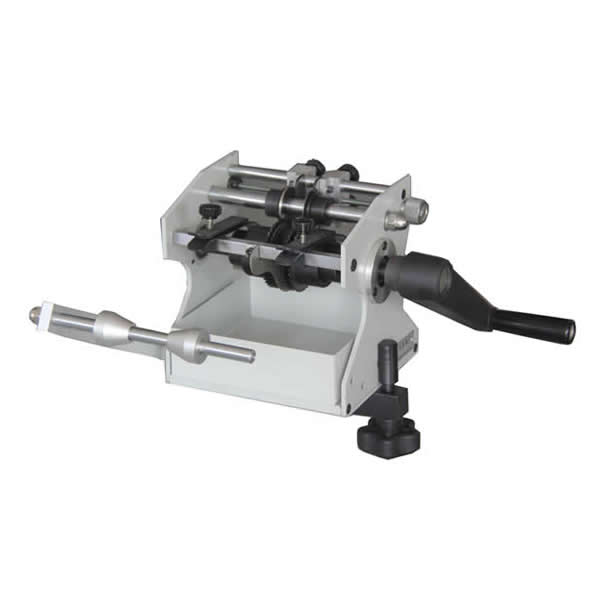

LF-601 Manual Taped Axial Lead Former Features
● Taped axial lead former for taped components process up to 25,000 / hour without any stress on your parts. |
● 2 Models are available for standard, and vertical lead forming. |
● LF-601 machine is easy to setup with simple adjustments for component cut length. |
● Independent rotary disc cutters with longer cutting life. |
● Easy maintenance and simple operation is your best choice. |

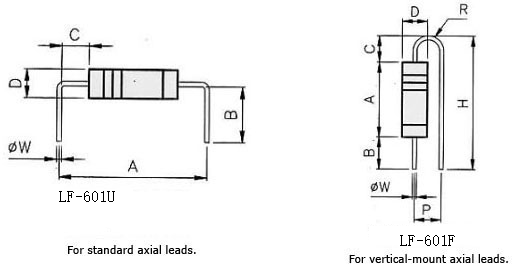

LF-601 - Specifications | ||
Model | LF-601U | LF-601F |
A | 6mm - 40mm | 4mm - 18mm |
B | 3.6mm - 10mm | adjustable |
C | 1.2mm Min | 4mm Min |
D | 1.5-8mm | 1.5-8mm |
H | 25mm Max | |
W (diam) | ¢0.35 - ¢0.8mm | ¢0.35 - ¢0.8mm |
P | 2.5-13.5mm | |
R (radius) | 1mm | |
Capacity | 25,000/hr | |
Dimensions | 300mm (L) x 200mm (W) x 210mm (H) | |
Net Weight | 8kgs | |
