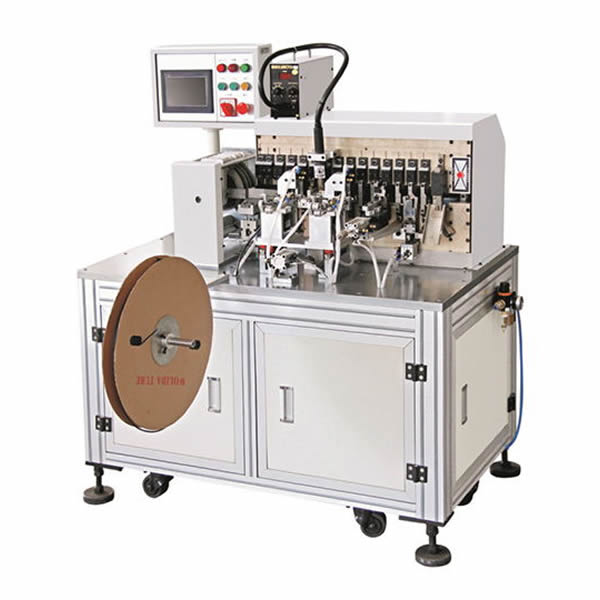

LF-617 is an customized automatic tube inserting, lead cutting and forming machine for taped or loose packed axial components.It is suited to automatically insert Teflon tube and heat shrinkable into component body or lead, then cut the lead and form it.

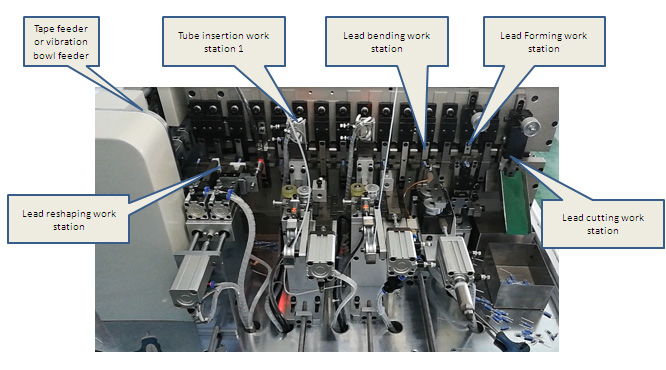

| ● Full Automatic working station, completely manual labor. |

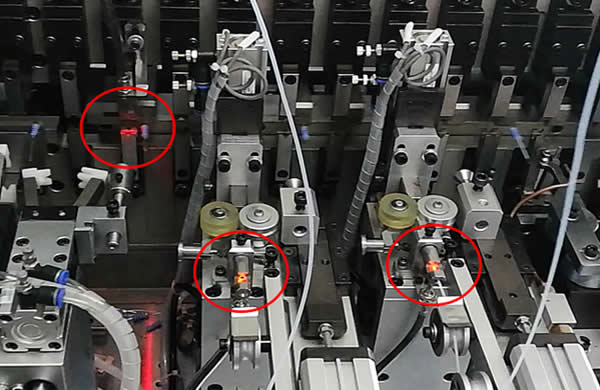

| ● Fiber sensor for component and tube exhaust detect. |

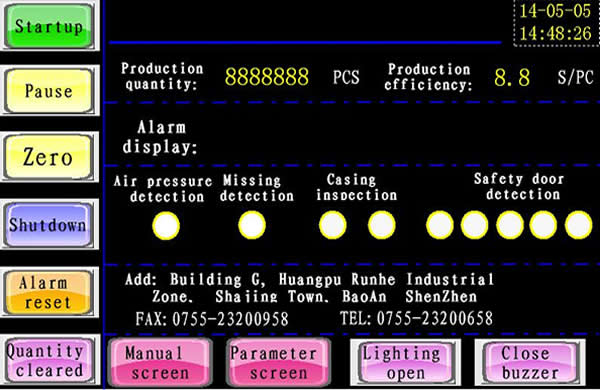

| ● Full English interface, easy to operate. realize full automatic production just by press start up button. |

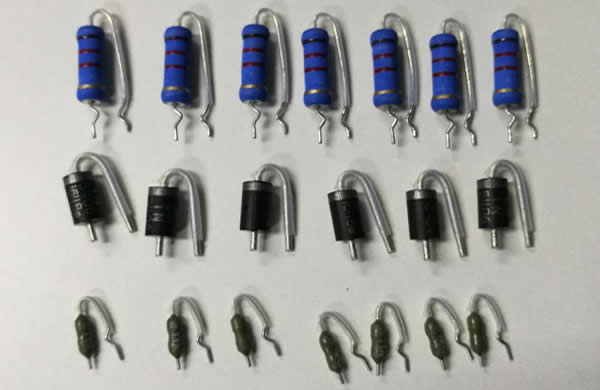

| ● Samples made by Automatic tube insertion and forming machine LF-617 |
Automatic tube insertion and forming machine LF-617 Features
● LF-617 is an customized automatic tube inserting, lead cutting and forming machine for taped or loose packed axial components. It is suited to automatically insert Teflon tube and heat shrinkable into component body or lead, then cut the lead and form it. |

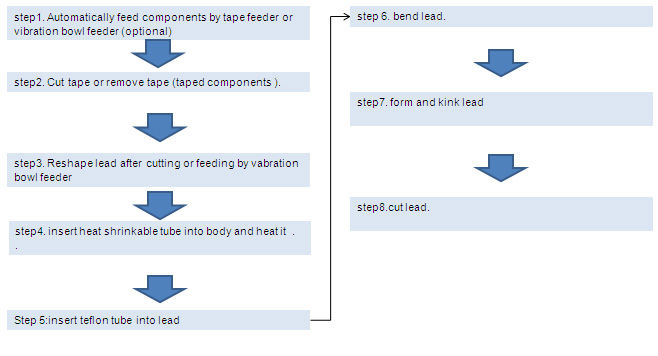

● Automatic process: Feed components-cut tape(for taped components)-lead reshape-insert heat shrinkable tube to component body-heat tube-insert Teflon tube-bend lead-form and kink lead-cut lead. |

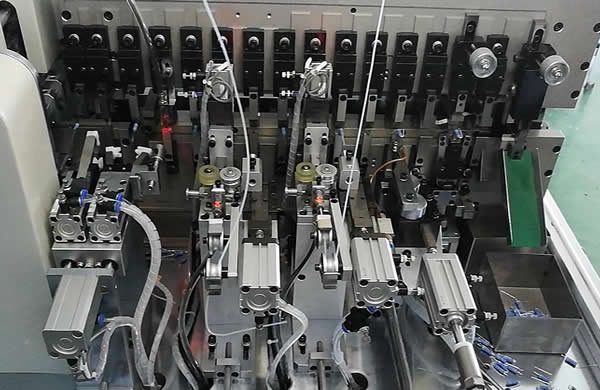

● machine adopt aluminum frame with compact size, which can save space and achieve high production efficiency. |
● machine adopt Panasonic PLC with touchscreen control, easy to operate. |
● machine is equipped with high quality electrical parts which can ensure stable running |
● Full automatic process replace traditional manual work, 1 machine can replace 3-8 human work. |
Automatic tube insertion and forming machine LF-617 Specification | |
Model | LF-617 |
Suitable components | Axial components, resistor, fuse, etc |
Component feeding mode | Tape feeder or vibration bowl feeder (optional) |
Suitable tube type | Round Heat shrinkble, teflon tube. |
Teflon tube size required | Min 0.5mm+lead diameter |
Forming die | Customized according to requirement(lead pitch is fixed for different dies) |
Component exhaust detect | Yes |
Tube exhaust detect | Yes |
Capacity | Approx 1500pcs/Hour |
Power | 1000W |
Air requirement | 0.4-0.6Mpa |
Power | 220V, 50HZ |
machine Size | Approx L1480×W880×H1830mm |
Weight | Approx 700KG |
Optional configuration:
●Security cover.
●Forming die.
