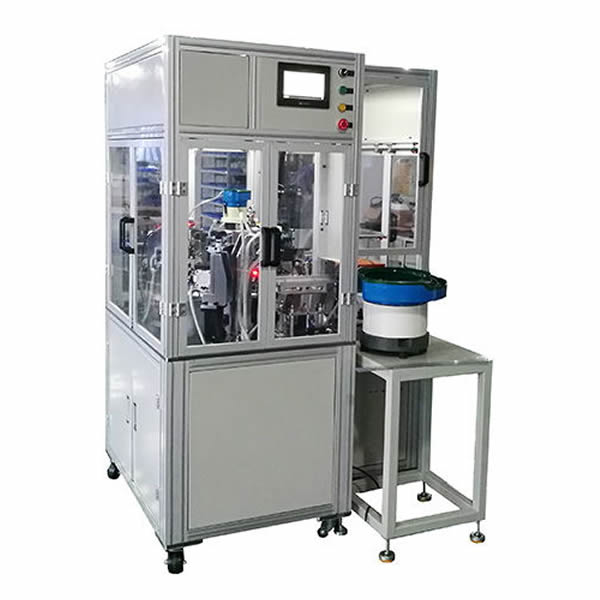

Bead And Tube Insertion Machine LF-2000A

LF-2000A is suited for 1 bead inserted on middle lead, 2 teflon tube inserted on left and right lead, lead forming and glue dispensing on the lead application.

Available Options

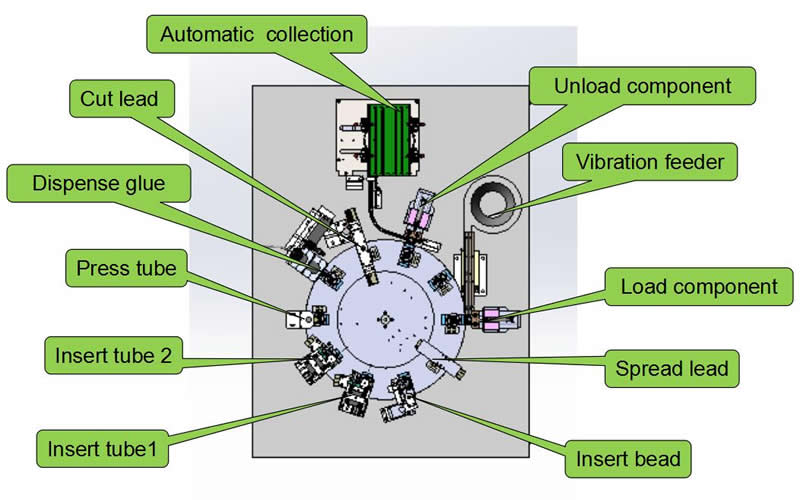

Bead And Tube Insertion Machine LF-2000A Details:

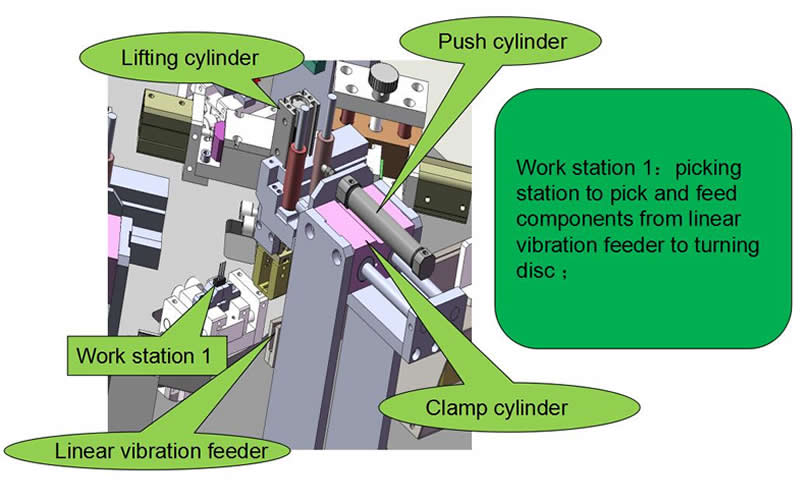

Vibration feeder	Linear feeder and picking work station

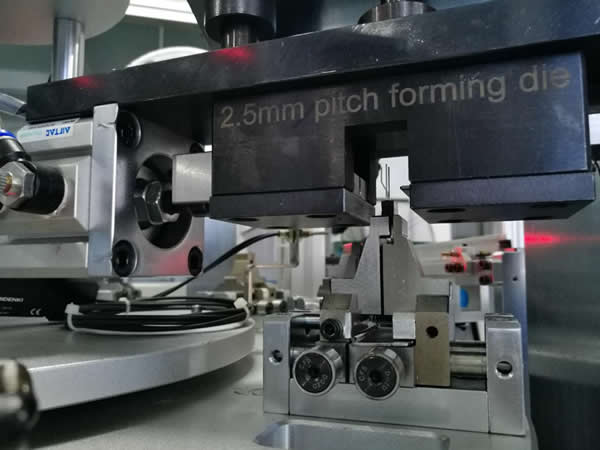

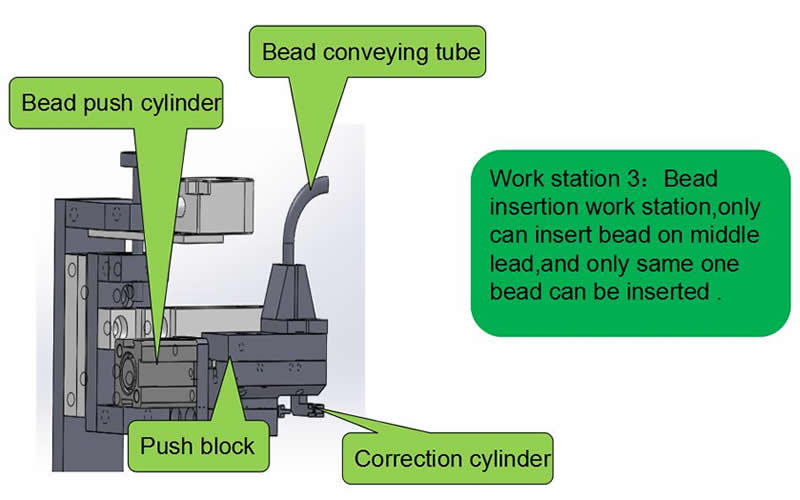

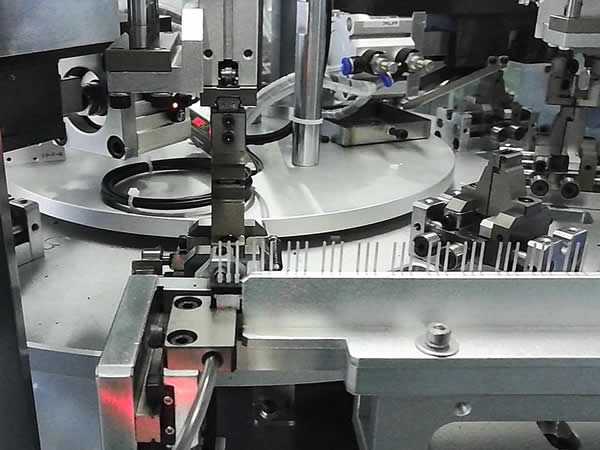

Lead forming die	Bead inserting work station

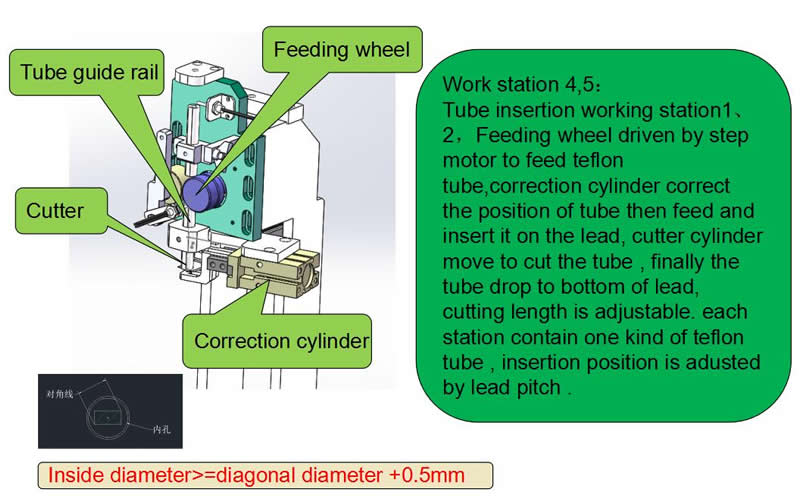

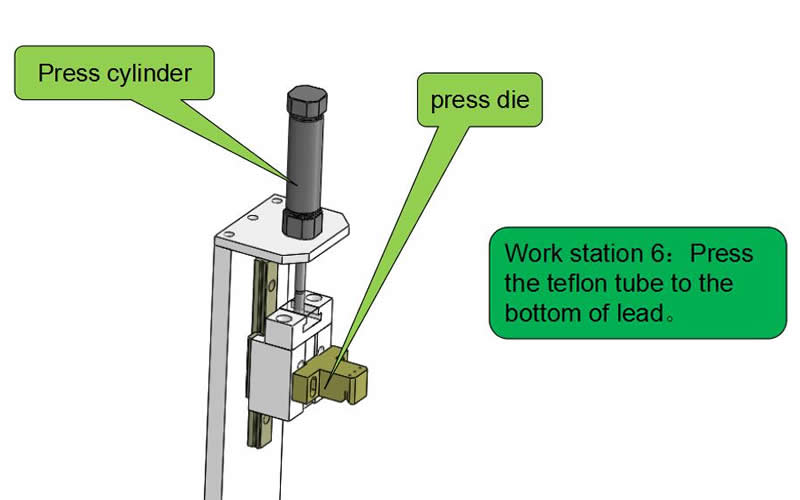

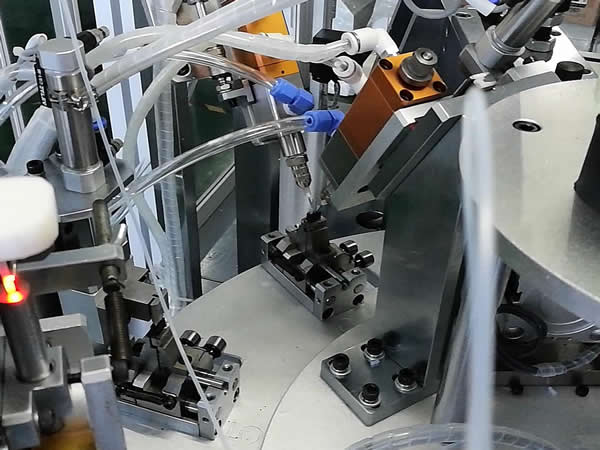

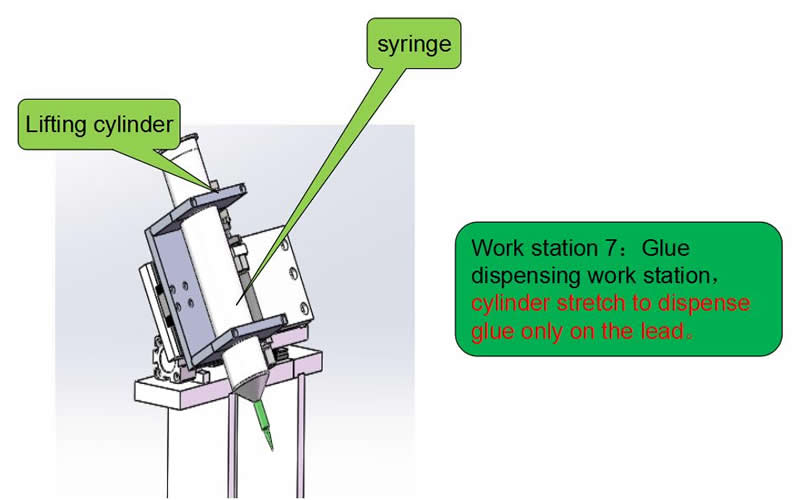

Tube inserting and pressing work station	Glue dispensing work station

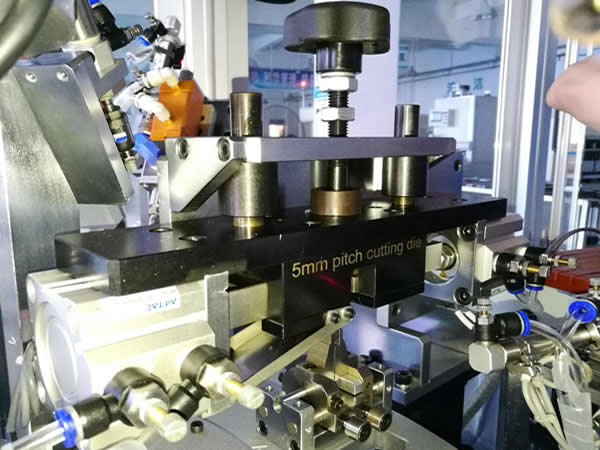

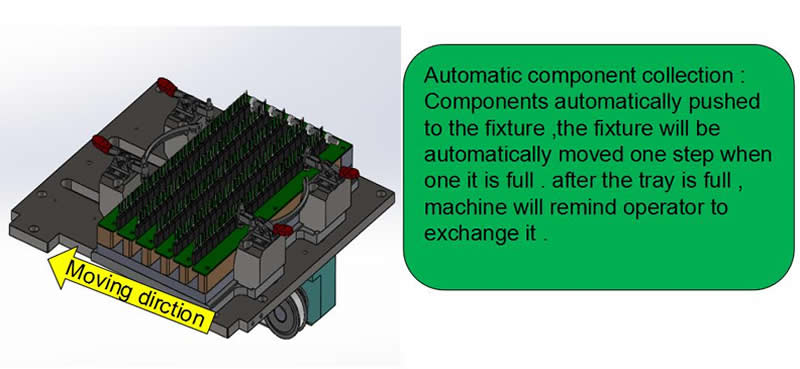

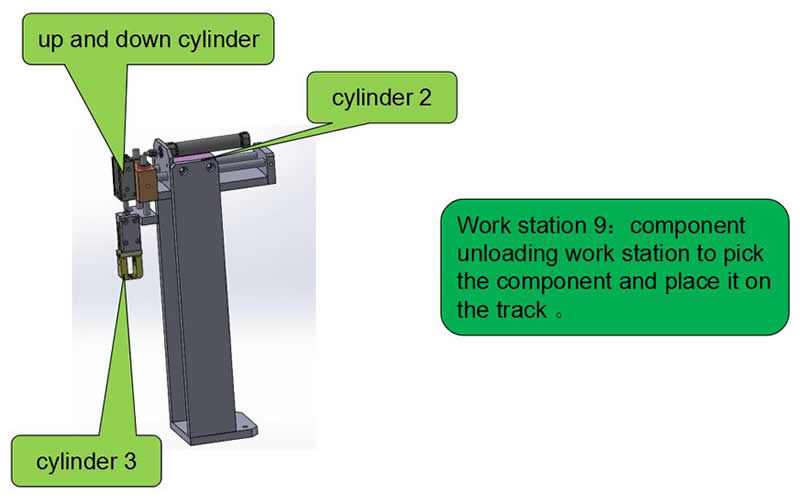

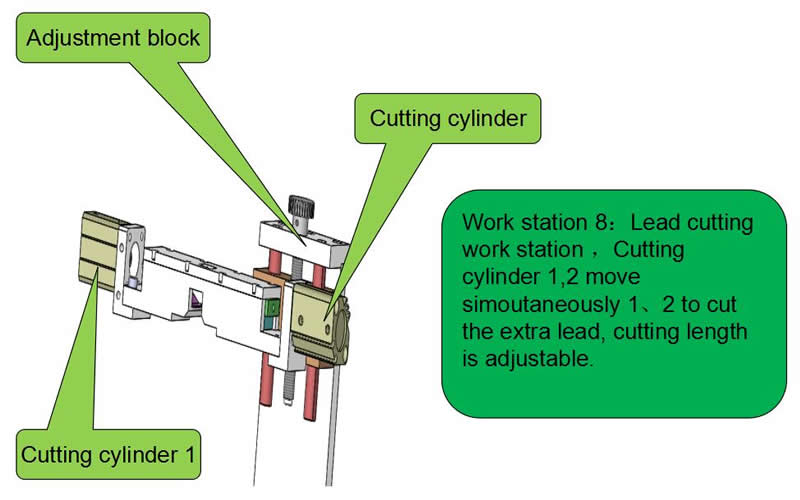

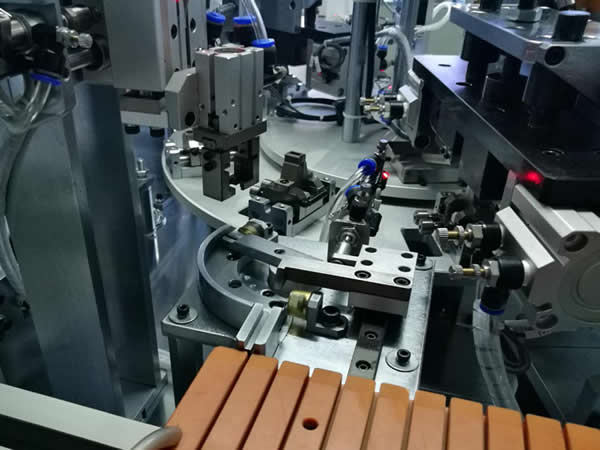

Lead cutting work station	Component unloading work station

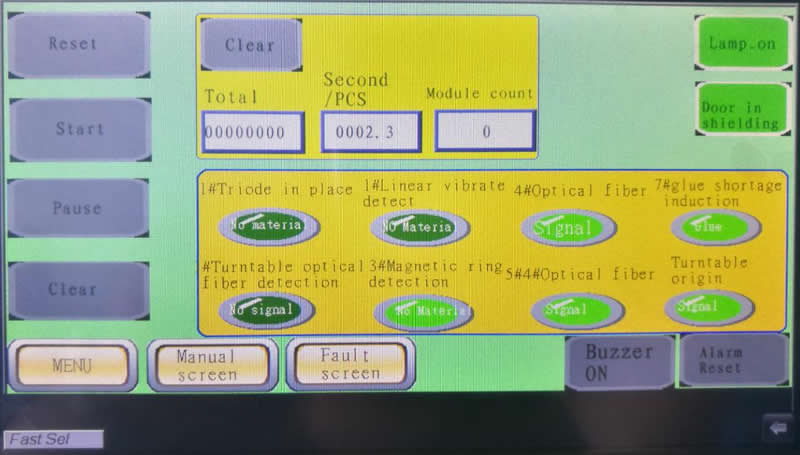

Full English interface, easy to operate. realize full automatic production just by press start up button.

Bead And Tube Insertion Machine LF-2000A Features

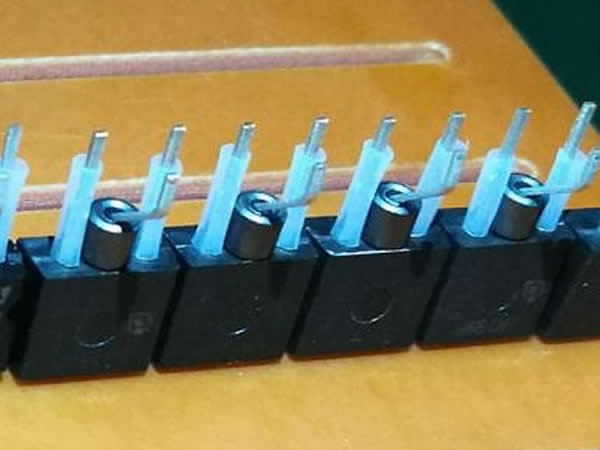

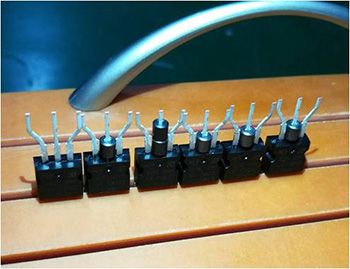

● LF-2000A is suited for 1 bead inserted on middle lead and 2 teflon tube inserted on left and right lead application, minimum tube inside diameter should be 0.5mm+diagonal diameter of lead.

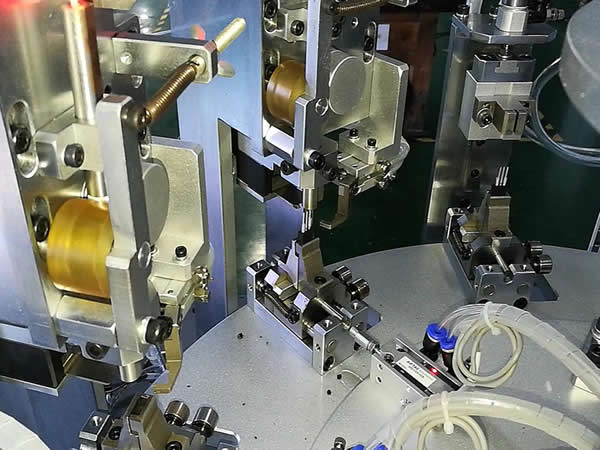

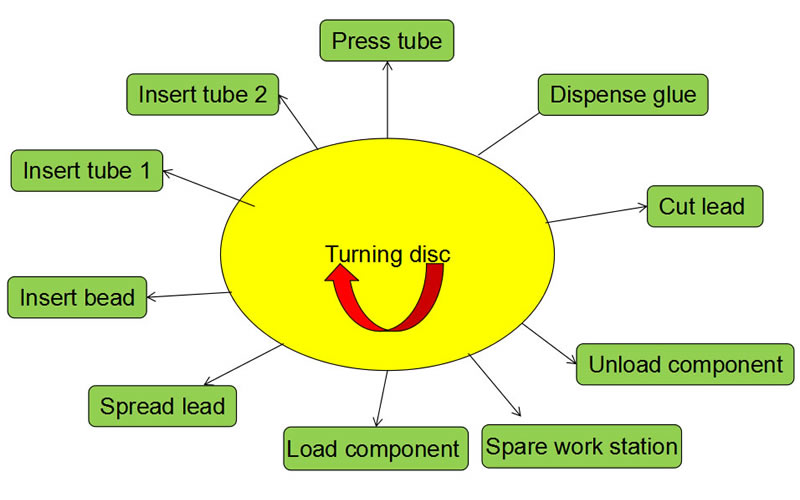

● PLC +Touch screen control, Turning disc revolve to realize lead spreading, bead insertion, teflon tube insertion, glue dispensing, and lead cutting process.

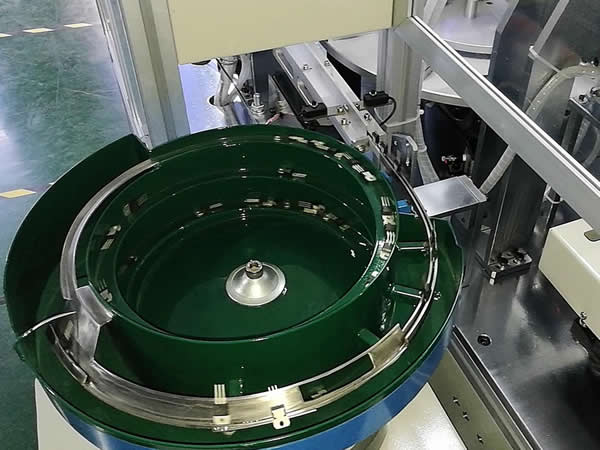

● Component is automatically fed by Vibration feeder.

● Lead spreading, tube or bead insertion, dispensing function can be disabled by software setting.

● Lead cutting length is adjustable

● If lead spreading width is different, Optional addtional forming die is necessary.

● Tube length inserted is adjustable

● Machine size: approx L1300*W1210*H1830mm

● Efficiency: approx 1000PCS/hour

Bead And Tube Insertion Machine LF-2000A Specification
Model	LF-2000A
Suitable components	Triode, etc
Component feeding mode	Tube feeder or vibration bowl feeder (optional)
Suitable tube type	Teflon tube
Teflon tube size required	Min 0.5mm+ lead diameter
Forming die	Customized according to requirement(lead pitch is fixed for different dies)
Component exhaust detect	Yes
Tube exhaust detect	Yes
Capacity	Approx 1000pcs/Hour
Power	1000W
Air requirement	0.4-0.6Mpa
Power	220V,50HZ
Machine Size	Approx L1300W1210H1830mm
Weight	Approx 500KG
