CM-S4 Adopt step-servo motor and 4 mounting spindle, with stage vision system which is capable to mount 0201 chips to the largest 30mm IC. it is very suitable for Small batch production; University teaching use; R&D customization; Personal entrepreneurship; processing on giving materials; and etc.
Compact Flexible Mounter CM-S4 Features |

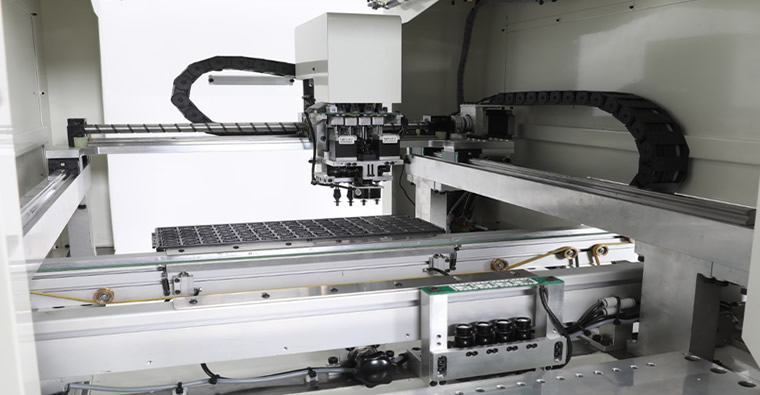

| Realizes Placement Speed of 4,000 CPH |
X/Y axis equipped with step-servo motor, realizes the placement speed of 4000 CPH with 4 spindles and stage vision. |
 |
| Reinforced Applicability to Parts and PCBs: |
● Applicable to parts from 0201 to 30mm parts ● Applicable to Max. 300(L) x 250(W) PCBs |

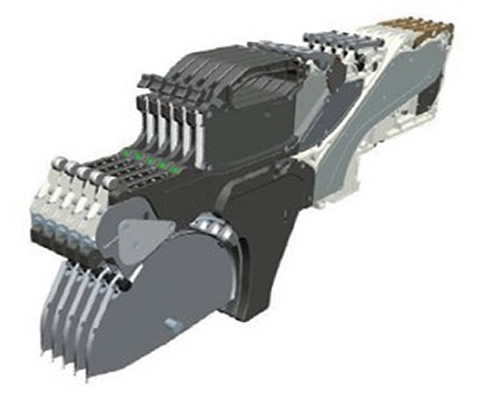

| Electrically Driven High Precision Feeder |
 |
| Self-developed software simplifies production, easy operating and programming. |
Compact Flexible Mounter CM-S4 Specifications: | |
Machine model | CM-S4 |
Vision system | Standard Equipped with: Fiducial Camera, Stage camera. |
Number of Spindles | 1 head * 4 spindles |
Driving method | X/Y axis with step-servo motor, Z axis with step motor |
Mounting speed | 4000 CPH(Real mounting speed: 3000 CPH) |
Component range | 0201˜30mm, max component height: 15mm |
PCB | Min.50(L)*50(W), 300(L)*250(W) |
| Standard: 300(W)*250(W)mm | |
| Thickness 0.5-3mm | |
Conveyor | Only Left to right, 900+/-20mm |
Feeder station | Standard: 8mm Feeder *18pcs on the front, option: addtional 25pcs * 8mm |
Power supply / air pressure | 1P, AC 220V /50HZ, 0.5~0.7Mpa |
Power | 1.5KW |
Machine weight | 150KG |
Machine size | 700(L)*900(W)*1300(H)mm |
