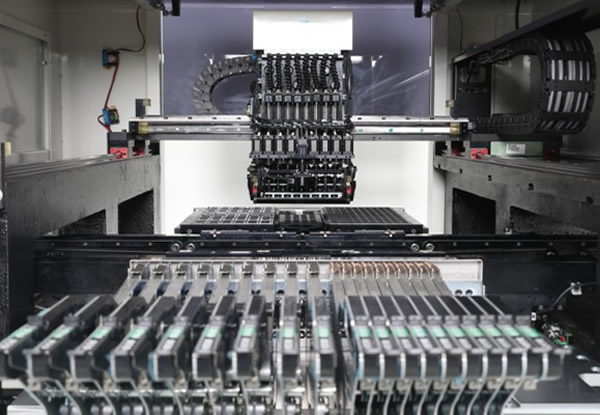

CM-S82 Adopt linear motor and 8 mounting spindle, with flying vision the efficiency of mounting and accuracy is greatly improved, it is applicable to 0402 chips to the largest 30mm IC.
Advanced Flexible Mounter CM-S8 Features |
| Realizes Placement Speed of 20,000 CPH |
X/Y axis equipped with linear motor, realizes the highest placement speed of 20000 CPH with 8 spindles and flying vision. |
 |
| Reinforced Applicability to Parts and PCBs |
● Applicable to parts from 0402 to □30mm parts ● Applicable to Max. 300(L) x 250(W) PCBs |
| Standard stage vision |

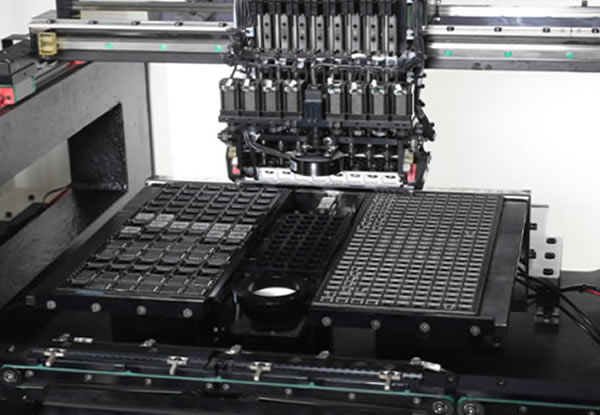

Standard equipped with stage vision for IC inspection, capable to contain 2 IC trays (325 x 135mm) |
 |

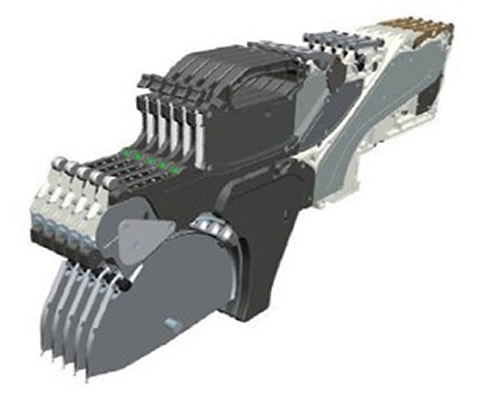

| Electrically Driven High Speed and High Precision Feeder |
 |
| Self-developed software simplifies production, easy operating and programming. |
Advanced High Speed Flexible Mounter CM-S8 Specifications | |
Machine model | CM-S8 |
Vision system | Standard Equipped with: Fiducial Camera, Flying camera, Stage camera. |
Number of Spindles | 1 head * 8 spindles |
Driving method | X/Y axis with linear motor Z axis with step motor |
Mounting speed | 20000 CPH（Real mounting speed: 15000 UPH） |
Component range | 0402˜30mm, max component height: 15mm |
PCB | Min.50(L)*50(W), 300(L)*250(W) |
| Standard: 300(W)*250(W)mm | |
| Thickness 0.5-3mm | |
Conveyor | Only Left to right, 900+/-20mm |
Feeder station | 64pcs*8mm feeder station |
Power supply / air pressure | 1P, AC 220V /50HZ, 0.5~0.7Mpa |
Power | 3.0KW |
Machine weight | 1500KG |
Machine size | 1150(L)*1370(W)*1500(H)mm |
