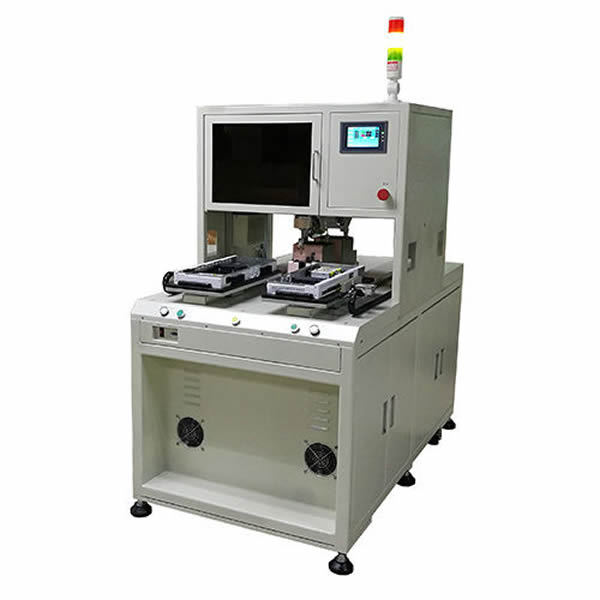

ASD-L206 Double X/Y/Z axis Step motor and driving system. Suited for one product which have 2 kinds of screws. High quality screw driving and feeing system. PLC and touchscreen control system. Screw locking range (X/Y/Z):450/210/ 60mm * 2 work table. High accuracy: repeatability is controlled within ± 0.05mm. Screw driving speed: 1.0-2.2 seconds /PCS (depending on the length of the screw). Screw driving defective rate:≤3‰
|
|
● Beatiful design, solid machine frame with high quality step motor with it's control system ensures machine run speedy and stably. |
|
|
● High quality screw driving and feeing system. HOIS screw driver and feeder is optional. |
|
|

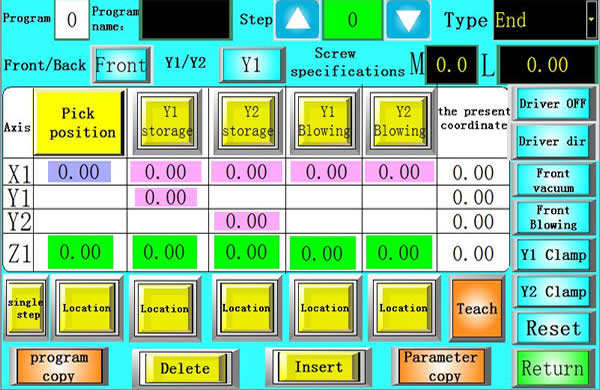

● Full english operation interface, easy to use. |
|
|

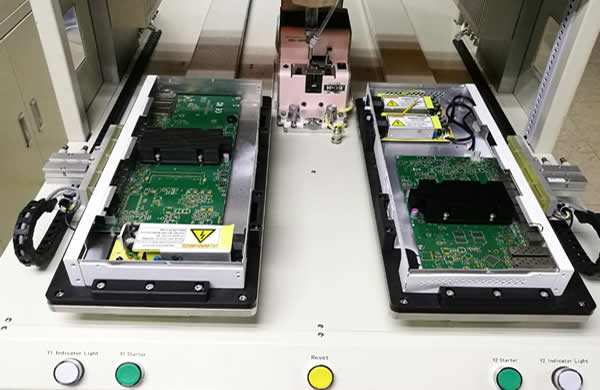

● Customized fixture for different products. |
Automatic Screw Driving Machine ASD-L206 Features
|
● ASD-L206 has double X /Y/Z axis design. it is suited for one product which have 2 kinds of screws. |
|
● The motion system adopt a 6-axis closed-loop stepper motor. |
|
● The control system adopt PLC with touch screen. |
|
● 2 set of electronic screw driver and 2 set of screw feeder for handling 2 different screws |
|
● High accuracy: repeatability is controlled within ± 0.05mm. |
|
● Lock screw defective rate control within 3 ‰ (depending on the screw). |
| ● With intelligent detection function, can detect missing driving, floating driving, loose screw driving, etc. |
| ● Applicable to a variety of different shapes of head screws (cross slot, hexagonal, countersunk head, plum, etc.) |
|
Automatic Screw Driving Machine ASD-L206 Specification |
|
|
Model |
ASD-L206 |
|
Work table size(mm) |
450mm*210mm *2 work table |
|
Driving system |
Double X/Y/Z axis step motor control |
|
Control system |
PLC + touch screen |
|
Screw range |
M1-M5 |
|
Screw picking method |
vaccum picking |
|
Screw driving speed |
1.0- 2.2 seconds/pcs |
|
Positioning Repeatability |
±0.05mm |
|
Compressed air pressure requirement |
0.4-0.7Mpa |
|
Machine size(mm) |
W800mm*D1500mm*H1500mm |
|
Power Supply |
AC 220V 50 HZ |
|
Power |
300W |
Automatic Screw Driving Machine ASD-L206 configuration
Standard configuration:
◎ Automatic screw driving machine ASD-L206
◎ 6 axis step motor and driving system .
◎ screw feeder *2pcs
◎ screw driver *2pcs
◎ 1 year parts warranty
Optional configuration:
◎ HIOS screw driver
◎ HIOS screw feeder

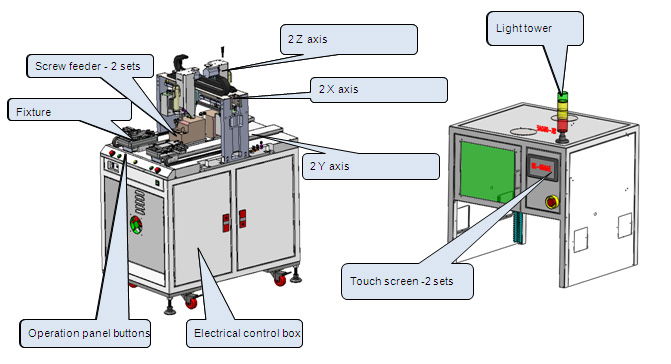

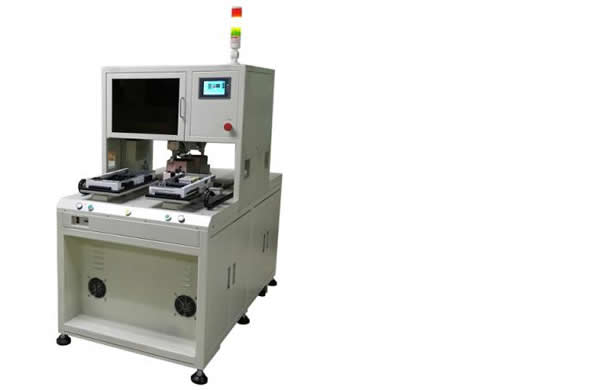

Automatic Screw Driving Machine ASD-L206 Basic Structure:

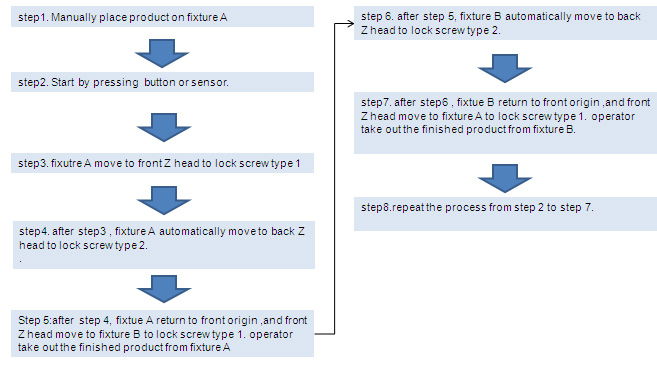

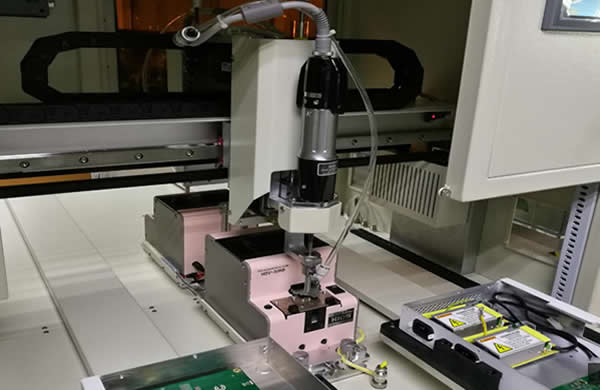

Automatic Screw Driving Machine ASD-L206 Working process:
