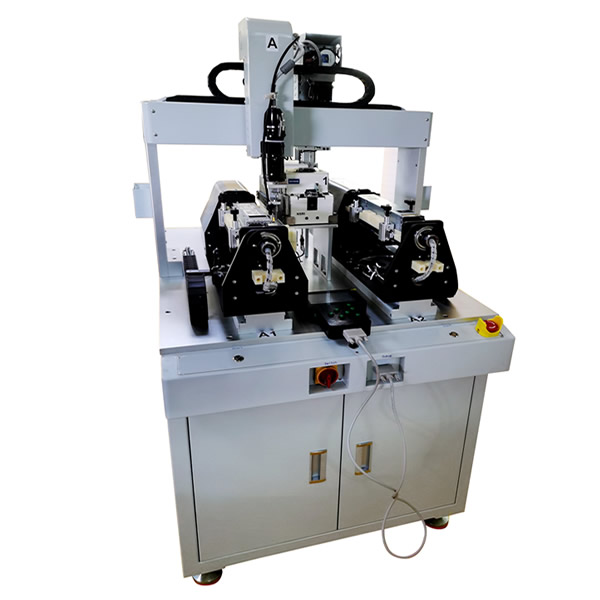

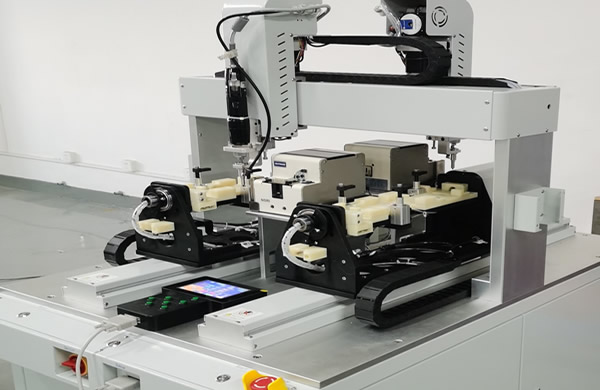

SY-S24S combined 2 screw driving heads and 2 work station in one machine, capable to fasten 2 different screws with 2 kinds of toque requirement, also can be used as 2 machines with single head and single work station large volume production. The double rotating platform can rotate 360 degrees, and the product can be locked with screws from 0-360 degrees. For a product that needs to be locked with multi-sided screws, the efficiency is very high. One machine is 3-4 times more efficient than multiple standard machines with single-sided screw locking.
|
|
● High quality robot with step motor controlled by PLC and touchscreen. SY-S24S combined 2 screw driving heads and 2 work station in one machine, capable to fasten 2 different screws with 2 kinds of toque requirement, also can be used as 2 machines with single head and single work station large volume production. |
|
|

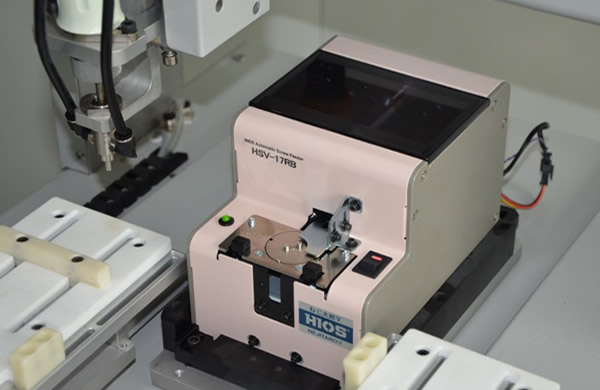

● High quality Japan made HIOS high quality screw driver and Quicher screw feeder. |
|
|

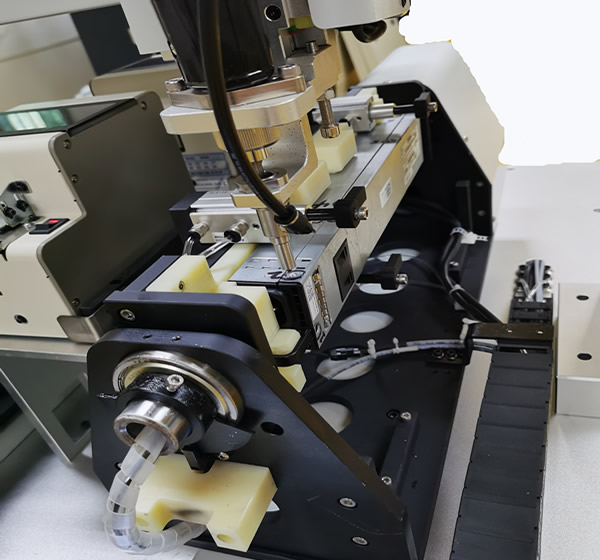

● The machine equipped with double rotating platform can rotate 360 degrees, and the product can be locked with screws from 0-360 degrees. For a product that needs to be locked with multi-sided screws, the efficiency is very high. One machine is 3-4 times more efficient than multiple standard machines with single-sided screw locking. |
|
|

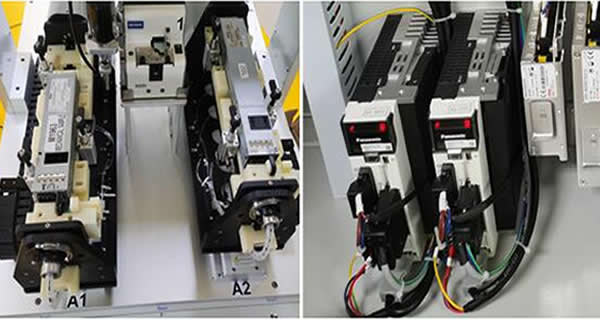

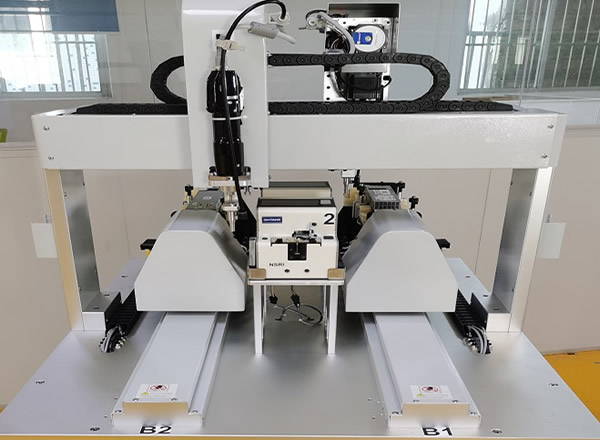

● 2 pcs (R1/R2) 360-degree rotating platforms controlled by panasonic servo driver and servo motor ensure machine run stably. |
|
|
● Customized fixture is available to variety of products. |
|
Customized Automatic Screw Driving Machine SY-S24S Features: |
|
● SY-S24S combined 2 screw driving heads and 2 work station in one machine, capable to fasten 2different screws with 2 kinds of toque requirement, also can be used as 2 machines with single head and single work station large volume production. The double rotating platform can rotate 360 degrees, and the product can be locked with screws from 0-360 degrees. For a product that needs to be locked with multi-sided screws, the efficiency is very high. One machine is 3-4 times more efficient than multiple standard machines with single-sided screw locking. |
|
● High quality 6 axis(X1/X2/Y1/Y2/Z1/Z2) step motor control +2 pcs (R1/R2) 360-degree rotating platforms controlled by servo motor and servo drive ensure machine run stably. |
|
● PLC and touch screen control system with full english interface, easy to operate. |
|
● Equipped with high quality Japan made HIOS screw driver and Quicher screw feeder. |
|
● Customized fixture is available to variety of products. |
|
● Support placing products on the front side of machine and taking out on back side of machine. |
|
● Screw missing detection and loose screw detection are standard configuration. |
|
● Screw floating height detecting function is optional to ensure each screw is driven to bottom and tightend. |
|
Automatic Screw Driving Machine SY-S24S Specification: |
|
|
Model |
SY-S24S |
|
Screw driving head quantity |
2 |
|
Work table quantity |
2 |
|
Work table size(mm) |
W255mm*D685mm*H85 |
|
Drive system |
X1/X2/Y1/Y2/Z1/Z2 axis step motor control+2 pcs 360-degree rotating platforms (controlled by servo motor and servo drive) |
|
Positioning Repeatability |
X/Y/Z:±0.05mm R:±0.1 degrees |
|
Screw picking method |
vaccum picking |
|
Screw drving efficiency |
max 1.5 pcs/sec |
|
Power |
Max:1.8KW |
|
Power Supply |
1P, AC110V/220V, 50/60 HZ |
|
Machine size(mm) |
W900mm*D1200mm*H1550mm |
|
Weight |
245KG |
|
Specification of screws for one pcs standard Quicher screw feeder |
One type of screw from M1.0 to M3.0(Others can be customized) |
|
Applicable Screw Length(under head) |
Up to 20mm |
|
Standard HIOS screw driver |
Standard Torque is 1~5kgf.cm (0.1~0.5N.M). Others can be customized |
|
Customized Automatic Screw Driving Machine SY-S24S Series configuration: |
|
Standard configuration: |
|
● Automatic screw driving machine SY-S24S |
|
● 6 aix step motor and driving system + 2pcs servo controlled R axis |
|
● Quicher screw feeder*2set(One type of screw from M1.0 to M3.0, Others can be customized) |
|
● HIOS screw driver *2set (Standard is CL-2000 or CL-3000 or CL-4000 two sets; Others can be customized) |
|
● 1 year parts warranty |
|
Optional configuration: |
|
● A axis for screws needed to be driven on different plane height. |
|
● Screw floating height detecting system to ensures each screw is driven to bottom and tightened. |
|
● Customized fixture |
