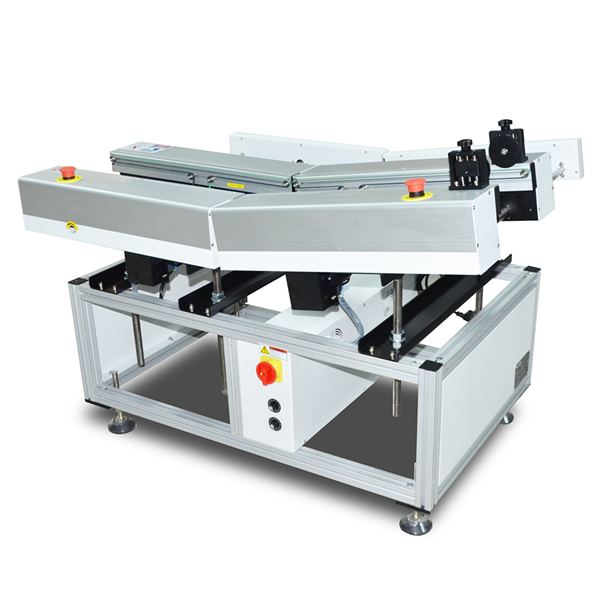

Wave Solder Inloading Conveyor
This conveyor is used to feed PCB’s or pallets into wave soldering machine.
Available Options

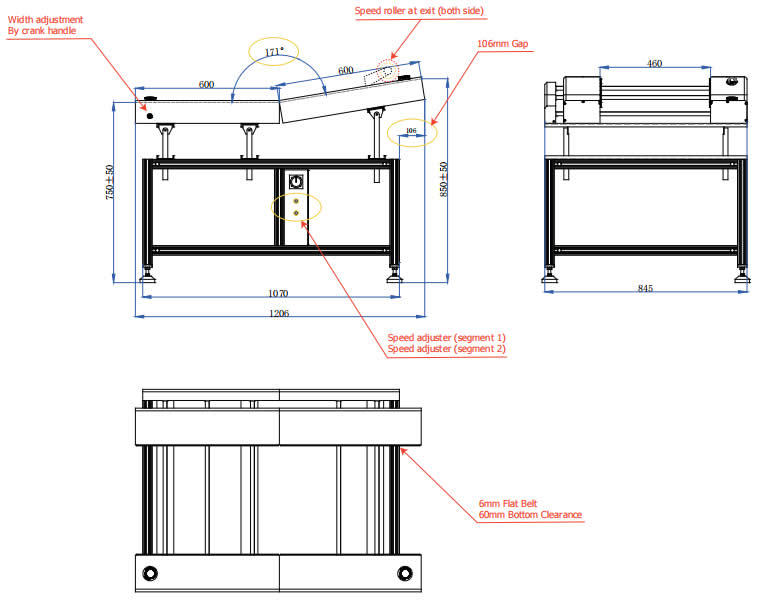

| Wave Solder Inloading Conveyor Dimension | ||||||||||||
|
||||||||||||
|
||||||||||||
|
Wave Solder Inloading Conveyor Features : |
|
● 800mm Aluminum conveying guide rail. |
|
● Flet belt (3 mm edge). |
|
● Conveying motor with speed controller. |
|
● Smooth and parallel width adjustment.(lead screw). |
|
Wave Solder Inloading Conveyor Specification : |
|
|
Model |
MWN-800 |
|
Transport height: |
850mm ±50mm |
|
Transfer direction: |
Left to right |
|
Operation side: |
Front of the machine |
|
Fixed rail: |
Front of the machine |
|
Interface: |
SMEMA |
|
Conveyer concept: |
Pin chain |
|
Belt speed: |
0-2m/min adjustable |
|
PCB edge support: |
5mm |
|
Power supply: |
230 VAC/50 Hz/1 Ph |
|
Power consumption: |
150VA max. or specify |
