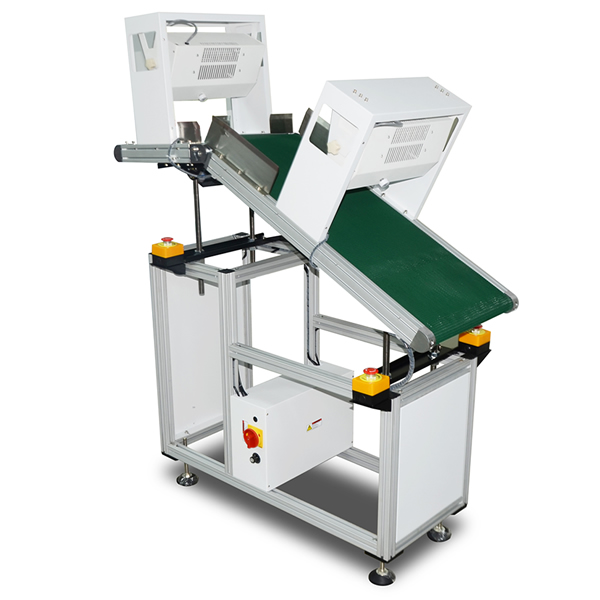

Wave Solder Unloading Conveyor
This conveyor is used to unload PCB’s or pallets from a wave soldering machine with adjustable angle. Decline section presents PCB/pallet at standard height to downstream machine.
Available Options

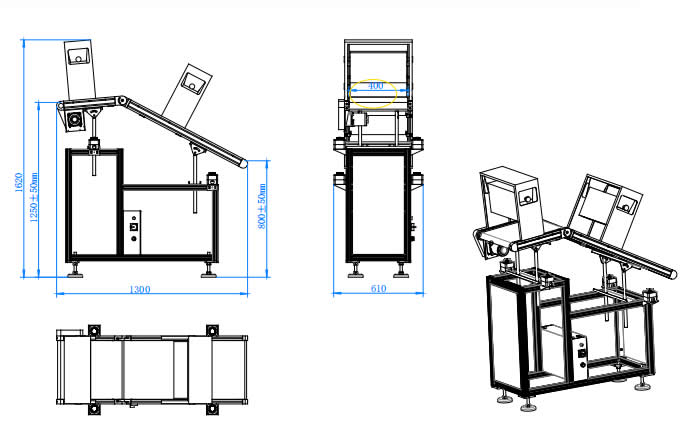

| Wave Solder Inloading Conveyor Dimension | ||||||||||
|
||||||||||
|
||||||||||
|
Wave Solder Unloading Conveyor Features : |
|
● Aluminum conveying guide rail. |
|
● 400mm belt. |
|
● Adjustable speed. |
|
● Adjustable angle. |
| ● Equipped with 2 groups of cooling fan. |
|
OPTIONS: |
|
● Ionizer aire blower instead of cooling fans. |
|
● Mesh Belt instead of ESD Belt. |
|
Wave Solder Unloading Conveyor Specification : |
|
|
Model |
MWN-1300 |
|
Transport height: |
1150±50mm |
|
Transfer direction: |
Left to right |
|
Fixed rail: |
Front of the machine |
|
Interface: |
None |
|
Conveyer concept: |
ESD belt |
|
Belt speed: |
0-2m/min adjustable |
|
PCB edge support: |
5mm |
|
Power supply: |
220 VAC/50 Hz/1 Ph |
|
Power consumption: |
200VA max |
