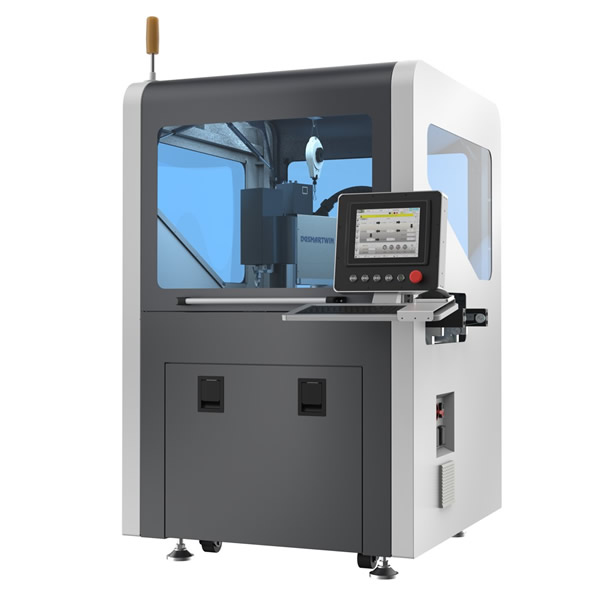

ASD-600i is an inline screw driving system, it is equipped with 3 axis SCARA robot, servo screw driving system the intellight control system which can help you realize full automatic screw driving and monitor screw tightening torque in real time.
|
|
|
|
|

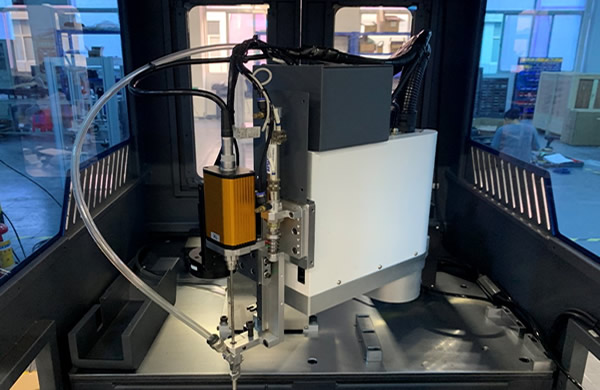

● equipped with high quality 3 axis SCARA robot which ensures stable and precise screw driving process.
● servo motor controlled screw driver, with intelligent software, which can accurately control and monitor screw tightnening torque. |
|
|

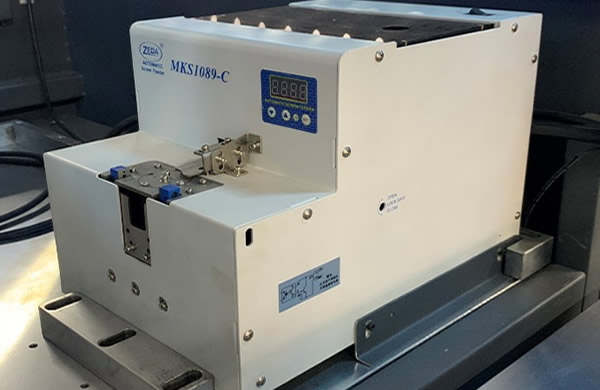

● High quality suck type screw feeder, feed screws stably. |
|
|

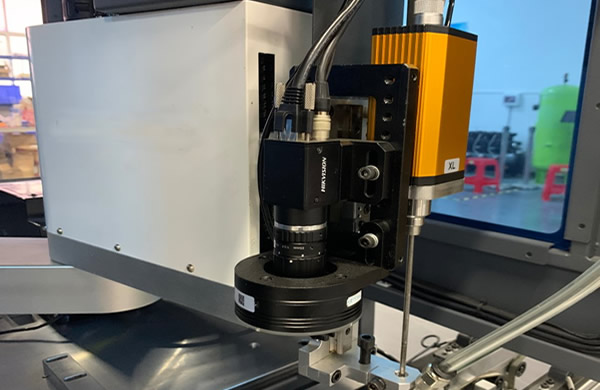

● Extraordinary vision system accurately position product, realize ±0.05mm screw driving accuracy. |
|
|

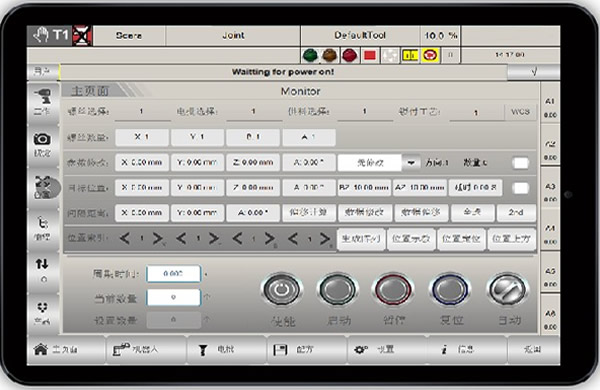

● Windows based software, easy to operate. |
|
Inline Screw Driving Machine ASD-600i Features: |
|
● ASD-600i adopt modular design, can be easliy intergrated into production line help you realize full screw driving automation. |
|
● Standard equipped with high quality 3 axis SCARA robot which ensures stable and precise screw driving process. |
|
● ASD-600i is equipped with servo motor controlled screw driver, with intelligent software, which can accurately control and monitor screw tightnening torque. |
|
● High quality screw feeding system ensure stable screw feeding. |
|
● Extraordinary vision system accurately position product, realize ±0.05mm screw driving accuracy. |
|
● Intelligent detection function, can detect abnormal conditions such as missing lock, loose, floating height, etc. |
|
● Windows based software, easy to operate. |
|
ASD-600i Specifications |
|
|
Model |
ASD-600i |
|
Motion system |
3 axis Scara robot, reach:600mm |
|
Screw driver |
servo motor screw driver *1set, monitor tightenging torque in real time. |
|
Screw feeder |
Suck type screw feeder *1set |
|
Suitable screw size |
M1-M4, customized |
|
Repeat positioning accuracy |
±0.05mm |
|
Z axis travel distance |
100mm |
|
Screw drving efficiency |
approx 2s/pcs |
|
Control system |
Windows OS based Self developed control system |
|
Fault detection |
missing, loose, and floating detection. |
|
Conveying system |
Conveying height:920±30mm, left to right. |
|
Machine power |
Max 2.5KW |
|
Machine voltage |
AC 220V/50HZ, 1P |
|

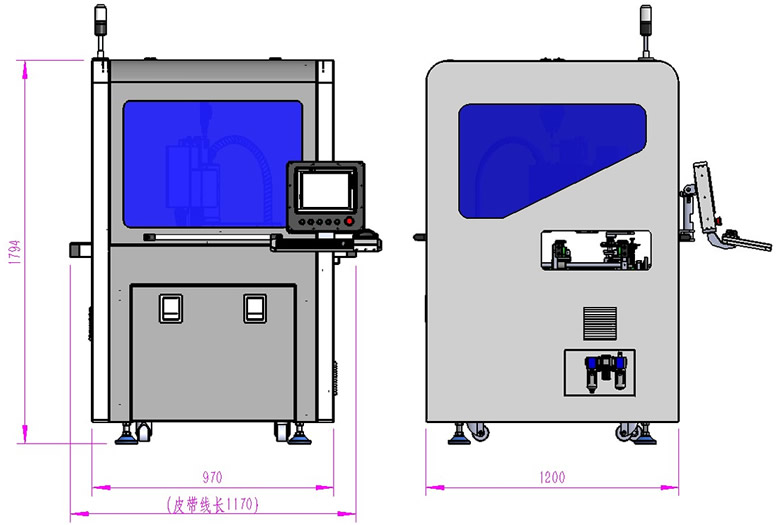

Machine dimensions |
Approx 1170*1200*1800mm (not including display and light tower ) |
|
Inline Screw Driving Machine ASD-600i includes: |
|
Standard configuration: |
|
● Inline Screw Driving Machine ASD-600i |
|
● servo screw driver *1pcs |
|
● suck type crew feeder *1pcs |
|
● 1 year parts warranty PLC controller |
