Vaccum board Loader Series

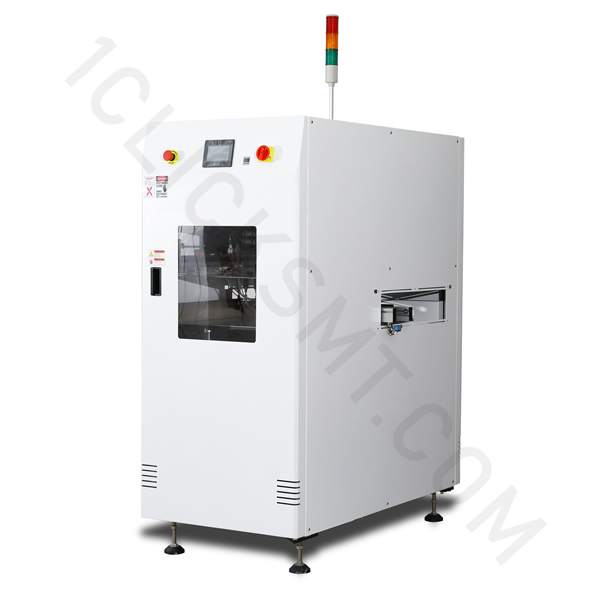

The unit is designed for automatic loading of unpopulated PCB's onto the line using suction cups. The top PCB is lifted from stack and lowered onto belt segment.

Available Options

Vaccum board Loader Series Features

● PLC Program control.

● Large stock capacity.

● Empty stack sensor.

● Flexible suction cup positioning.

● Convenient front door stack loading.

● Towerlight display for machine status.

● Smooth and parallel width adjustment.(lead screw).

● By-pass mode selectable without removing PCB stack.

● SMEMA compatible.

Vaccum board Loader Series Specifications

● Transport height:	900mm ±30mm
● Transfer direction:	Left to right
● Operation side:	Front of the machine
● Fixed rail:	Front of the machine
● Interface:	SMEMA
● Conveyer concept:	ESD belt (round or flat)
● Belt speed:	0.5-20m/min adjustable
● PCB edge support:	3mm
● Power supply:	230 VAC/50 Hz/1 Ph
● Power consumption:	150VA max. or specify
● Air supply:	4-6 bar
● Air consumption:	10 ltr/min max.
● Diameter sictopm pads:	15mm or specify
● PCB thickness capability:	0.2-4.0mm
● PCB stock capability:	240mm or specify.

Model	LDV330L	LDD460XL

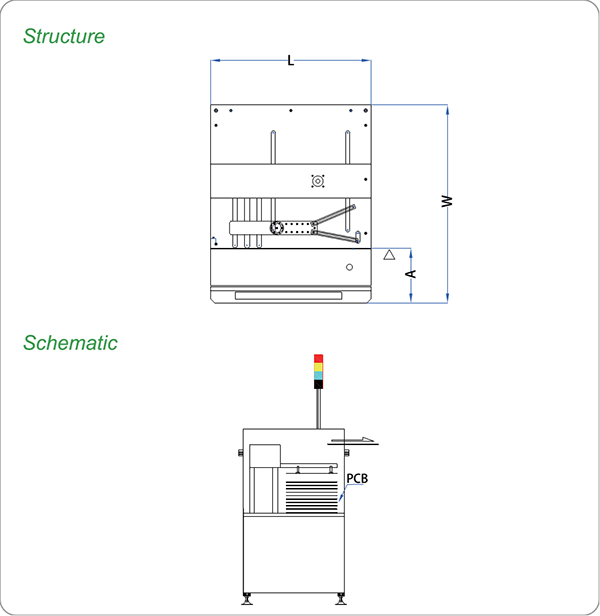

Machine Dimension (L x W x H)	650 x 730 x 1035	800 x 800 x 1035
Weight	200kg	240kg
PCB length	50mm - 380mm	50mm - 530mm
PCB width	50mm - 330mm	50mm - 460mm
PCB Thinckness	0.6mm – 4.0mm	0.6mm – 4.0mm
Fixed rail to front dimension(A)	340mm	340mm
