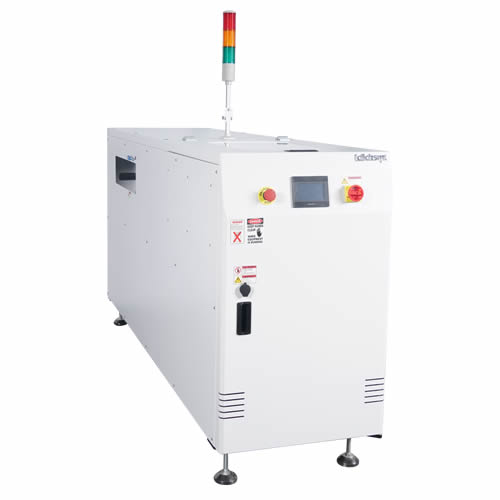

Traverser/Shuttle Conveyor Series

init sku time:

The shuttle conveyor is used for transporting boards from one line into two lines or vice versa. The orientation of the board is not changed during traversing.

Available Options

Traverser/Shuttle Conveyor Series Features

● Pannasonic PLC Program control.

● By-pass mode selectable.

● Customized traversing distance.

● Towerlight display for machine status.

● Frequency controlled traversing speed.

● Enclosed design ensure highest level of safety.

● Conveyor width adjustment using hand crank.

● SMEMA compatible.

Traverser/Shuttle Conveyor Series Specifications

● Transport height:

910mm ±30mm

● Transfer direction:

Left to right

● Operation side:

Front of the machine

● Fixed rail:

Front of the machine

● Interface:

SMEMA

● Conveyer concept:

ESD flat belt

● Belt speed:

0.5-20m/min adjustable

● PCB edge support:

3mm

● Power supply:

230 VAC/50 Hz/1 Ph

● Power consumption:

250VA max. or specify

● Cycle time:

Depends on traversing distance

● Number of Cart Sigle cart transportation

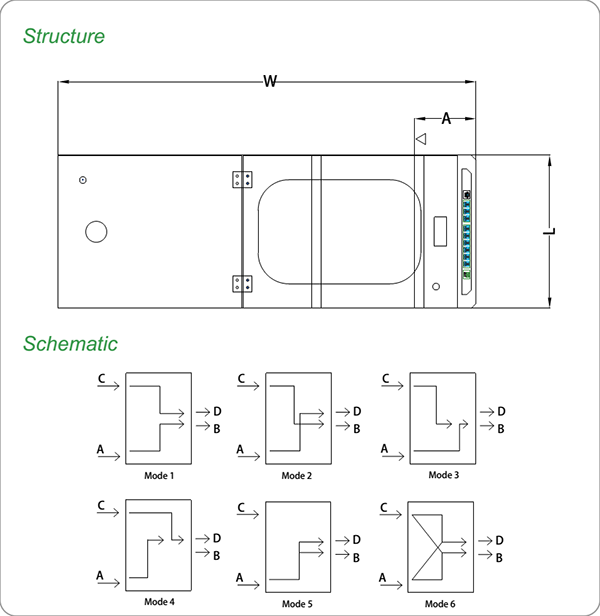

Traverser Shuttle conveyor.png

* Customized traversing distance (W)

  Model

  TRB250M

  TRB330L

  Machine Dimension (L x W x H)

  503 x (W) x 950

  503 x (W) x 950

  Weight

  About 140kg

  About 200kg

  PCB length

  50mm - 470mm

  50mm - 470mm

  PCB width

  50mm - 280mm

  50mm - 390mm

  Fixed rail to front dimension(A)

  200mm

  200mm

* Customized is available

Traverser/Shuttle Conveyor Series Options

● 2 transferring carts operation.

● Touchscreen instead of button distance.

● Customized traversing distance

● Good - or bad board separation.

● Automatic conveyor width adjustment.

● Servo drive upgrade for shortened cycle time.

● Cantilevered input- or output conveyor .(length 500 mm)

● Other options available on request.
