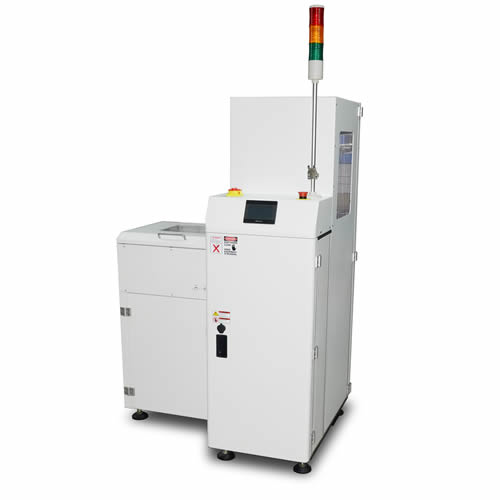

Single Magazine Unloader Series

The PCB's are collected from upstream machine using attached conveyor and pushed into the magazine.

Single Magazine Unloader Series Features

● Pannasonic PLC Program control.

● Selectable pitch settings.

● Towerlight display for machine status.

● Flexible platform to suit standard magazines.

● Exchange magazine from the rear of the machine.

● Regulated pressure on attached pneumatic pusher.

● Pusher position adjustable to centre of the magazine.

● User friendly “soft touch” LED membrane control panel.

● Magazine is manually placed on the platform and clamped in position.

● SMEMA compatible.

Single Magazine Unloader Series Specifications

● Transport height:	900mm ±30mm
● Transfer direction:	Left to right
● Operation side:	Front of the machine
● Fixed rail:	Front of the machine
● Interface:	SMEMA
● Conveyer concept:	ESD flat belt
● Belt speed:	16m /min
● PCB edge support:	3mm
● Components clearance:	Top 30 mm, bottom 30 mm (depends on pitch)
● Power supply：	230 VAC/50 Hz/1 Ph
● Power consumption:	350VA max. or specify
● Air supply:	≥6 bar
● Air consumption:	10 ltr/min max.
● PCB unloading time:	±6 seconds
● Pitch distance:	10.20.30.40mm pitch or specify.
● Total number of magazines:	* 1 mgazine on the lifter platform. * or specify

Model	ULDA250M	ULDA330L	ULDA390LL	ULDA460XL
Machine Dimension (L x W x H)	1050 x 800 x 1700	1250 x 900 x 1700	1480 x 980 x 1700	1480 x 1050 x 1700
Weight	200kg	220kg	240kg	260kg
PCB length	50mm - 330mm	50mm - 445mm	50mm - 530mm	50mm - 530mm
PCB width	50mm - 250mm	50mm - 330mm	50mm - 390mm	50mm - 460mm
PCB Thinckness	0.6mm – 4.5mm	0.6mm – 4.5mm	0.6mm – 4.5mm	0.6mm – 4.5mm
Magazine Dimensions (max.)	355 x 320 x563	460 x 400 x 563	535 x 460 x 570	535 x 530 x 570
Fixed rail to front dimension(A)	372mm	372mm	372mm	372mm
