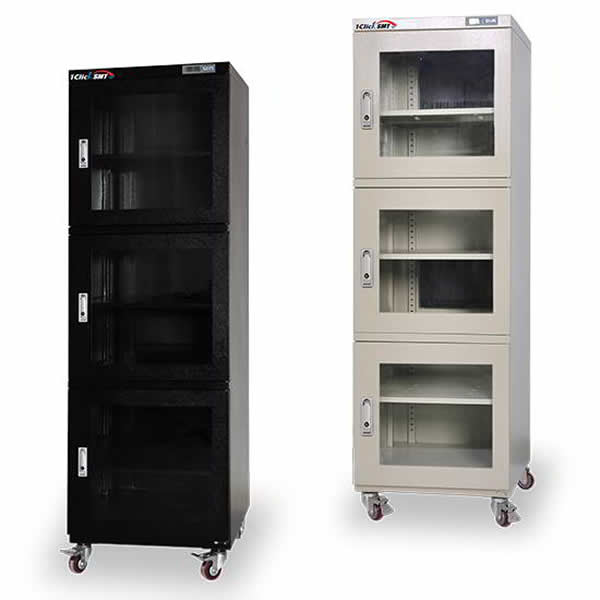

Dry Cabinet Series 728-3

A full range of various dry storage cabinets ensures that your production is based on the IPC/JEDEC Standard STD-033B for moisture sensitive devices.

728-3 Dry Cabinet Series Feature

● LED display; conveniently display temperature(Left/Green) and humidity(Right/Red).

● Using 1.0 and 1.2mm Cold-rolled Steel, 3.2mm tempered glass, lock-key handle.

● Door frame covered with magnet rubber keeps reliable air tightness.

● Special desiccant in DRY-UNIT is semi-permanent.

● Humidity controller maintains stable constant humidity.

● Operation in normal temperature, noiseless, long life.

● Fast dehumidifying speed, the humidity of inner cabinet can drop down in several minutes with the nitrogen cabinet TR-DG-728-3(A).

● Sturdy and durable shelf is movable up and down and slip layer board make the interspaces adjustable.

● Energy saving design: low electricity consumption resurgence, no heating, no condensation dripping, absence of fan noise.

728-3 - Specifications
Model	TR-FCM-728-3(A)	TR-FCD-728-3(A)	TR-FCDE-728-3(A)	TR-DG-728-3(A)
Humidity Range	20-60%RH	10-20%RH	1-10%RH	1-60%RH
External Size(mm)	W600D710H1920
Inner Size(mm)	W598D680H1738
Material & Finishing	Cabinet: high quality steel plate; Hard-coated resin paint Door: Glass window Powerful magnet rubber seal maintain high airtight
Max Capacity	728Liter
Power Consumption(W/H)	0.5-47W/H(MAX370W) (AC 220V)
Power Source	AC110-115V(50/60HZ) or AC220-240V(50/60HZ)
Removal Shelf	5 (material: steel or stainless)
Door Key	3
Hygrometer	1
Caster	4
Note: 1."A" the model means ESD-Function, color is black. 2. “DG” means the nitrogen cabinet, customer shall order Nitrogen Gas in local to run the N2 cabinet!
