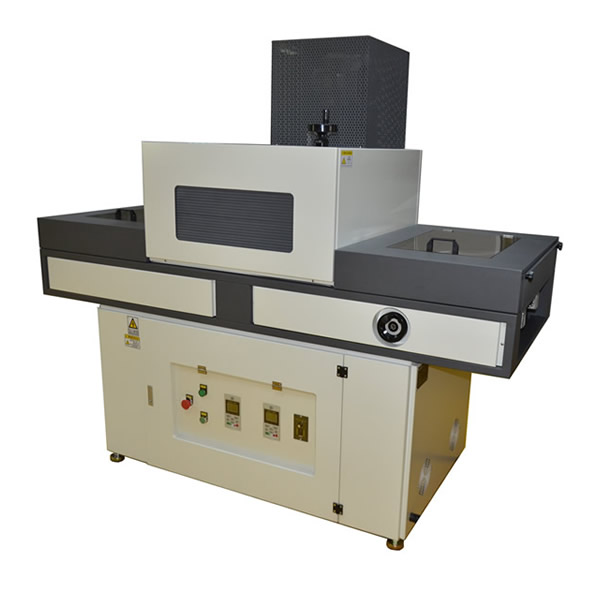

UV Curing Machine UVC-602 Series
UV Curing machine UVC-602 series is equipped with 2 groups of quality metal halid lamps and stepless lighting controller, which is suitable for conformal coatng material curing.
Available Options
|
|

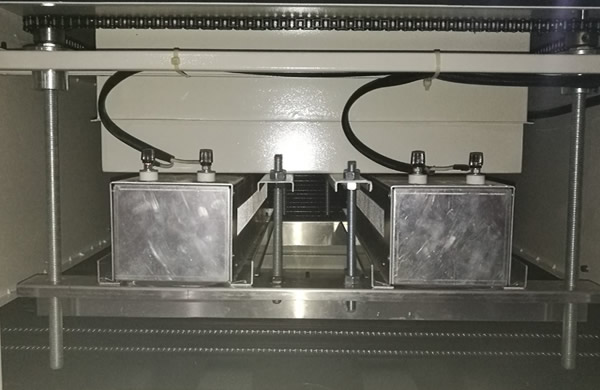

● UV system adopt 2 groups of metal halid lamps, each lamp is controlled by stepless lighting controller independently, lamp height is adjustable. |
|
|

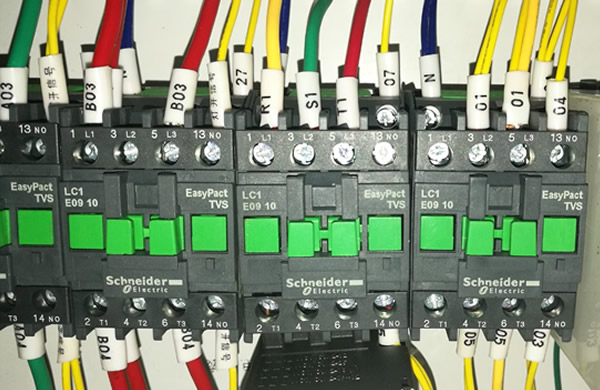

● High quality electrical parts like Schneider contact ensure long service life of machine. |
|
|
● Teflon mesh belt conveyor for Offline mode UVC-602, Stainless steel pin chain conveyor for inline mode UVC-602I. |
|
|

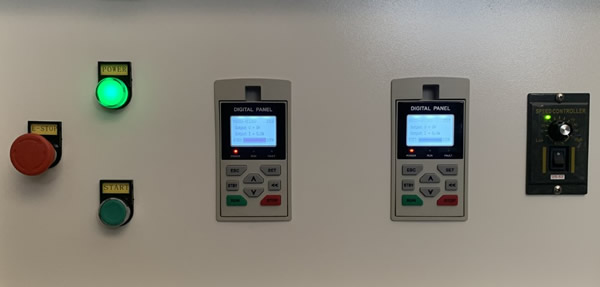

● stepless lighting controller, easy-operated control panel. |
|
UV Curing Machine UVC-602 Series Features: |
|
1. UV system adopt 2 groups of metal halid lamps, each lamp is controlled by stepless lighting controller independently, lamp height is adjustable. |
|
2. With aluminium-magnesium alloy reflector, Ultraviolet light can be effectively reflected more than 95%, CF vapor-plated quartz-glass and filtered IR, temperature is effectively reduced. |
|
3. Forced air cooling exhausting system is adopted for lamp cooling and to reduce conveying mesh temperature. |
|

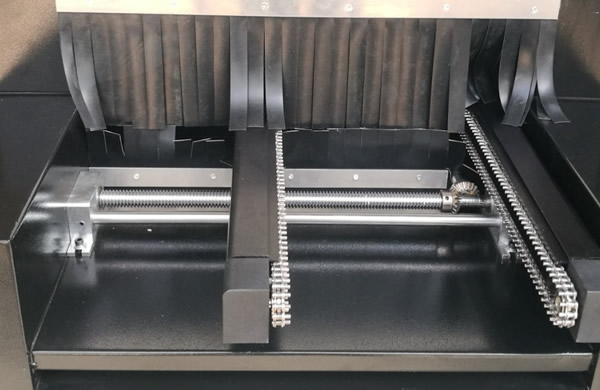

4. Offline mode UVC-602 with teflon mesh belt is easy for placing mutiple PCBs. Inline mode UVC-602I with stainless steel pin chain conveyor can be easily connected with selective coating machine for Inline production. |
|
5. High quality electrical parts are adopted to ensure long service life of machine. |
|
UV Curing Machine UVC-602 Series Specification |
||
|
Model |
UVC -602 |
UVC -602I |
|
Overall dimension |
L2000*W715*H1800mm |
L2000*W840*H1800 |
|
Net weight |
about 320Kg |
about 370Kg |
|
Power supply |
3 phase 380v 50hz |
3 phase 380v 50hz |
|
Conveyor speed |
0-3000mm/min |
0-3000mm/min |
|
General power |
14kw |
14kw |
|
Curing and controlling system |
||
|
lamp type |
6KW metal halid lamp |
6KW metal halid lamp |
|
lamp number |
2 pieces |
2 pieces |
|
curing zone length |
800mm |
800mm |
|
UV lamp controller |
stepless electronic lighting controller |
stepless electronic lighting controller |
|
Conveyor system |
||
|
Conveyor type |
Teflon mesh belt conveyor |
Stainless steel pin chain and guide rail conveyor |
|
Conveying height |
/ |
920±30mm |
|
Conveying direction |
Left to right only |
Left to right only |
|
Max Product height |
100mm |
100mm |
|
Max Product width |
450mm |
450mm |
|
Cooling type |
cooling fan |
cooling fan |
|
Exhausting |
||
|
Exhausting volume |
28m3/min, connecting pipe diameter :200mm |
28m3/min, connecting pipe diameter :200mm |
|
UV Curing Machine UVC-602 Series Includes: |
|
Standard configuration: |
|
● UV curing machine UVC-602 series |
|
● 6KW metal halid lamp with stepless electronic lighting controller * 2set |
|
● 1 year parts warranty |
|
Option: |
|
● Metal halid lamp |
