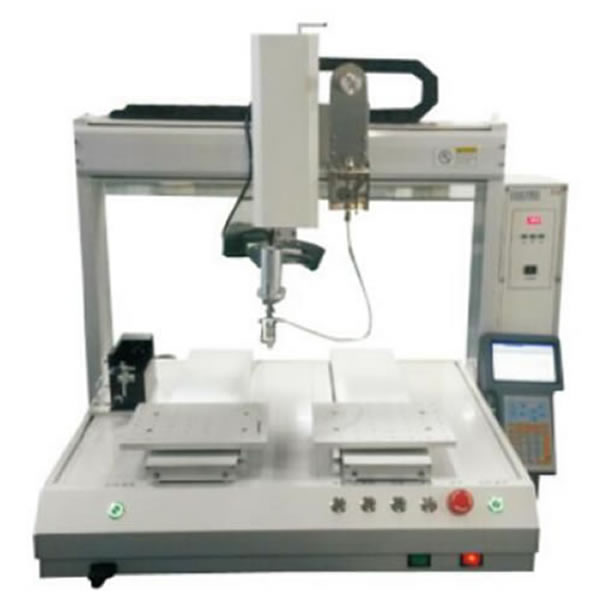

L332 Automatic Soldering Robot

init sku time:

L332 is a 6 axis  soldering robot with X,Y1,Y2,Z,R, and solering wire feeding motion system. it is equipped with 150W heating system with rapid heat recovery, soldering tip is easy to be exchanged with low cost. Automatic solder wire feeder. Self-developed software easy to operate.

Available Options

L332 Automatic Soldering Robot Features:

1. Advanced industrial design, beautiful shape, solid structure break traditional framework, which is more reasonable and practical.
2. X,Y1,Y2,Z,R, and soldering wire feeding motion system are all controlled by one combined 6 axis motion control card, so it can integrate all the functions into one software like programming, soldering time setting, solder wire feeding length setting. it makes machine running more stable and easy to operate.

3. X,Y1,Y2,Z,R axis adopt quality step motor with it's contorl system, make machine run smoothly and precisely.

4. It is equipped with automatic soldering tip cleaning device, which can improve soldering quality and prolong lifetime of soldering tip.

5. L332 is equipped with teach panel for programming, makes programming very easy.

6.150W heating system has rapid temperature recovery time . soldering tip can be easliy changed with lower cost.

7. Self-developed advanced software, fool-style programming with wireless controller like play game, all parameters can be set in one program, solder wire feeding quantity, soldering time etc, very easy to use.
8. Various soldering tips can meet different process requirement. customized solering tips is also available.

L332 Automatic Soldering Robot specification :

  Model

  L332

  Axes

  X/Y1/Y2/Z/R/wire feeder

  Machine travel(X/Y1/Z/R)

  Y1 platform : 260*300*80mm*360˚
  Y2 platform : 260*300*80mm*360˚

  Max running speed(X/Y/Z)

  500mm/s

  Repeat positioning accuracy

  ±0.06mm

  Plateform load

  5KG

  Temperature Range

  200℃-450℃

  Temperature control accuracy

  ±2℃ (no air flow, no load)

  Min Solder wire feeding length

  0.1mm

  Solder wire feeder

  standard 0.8mm-1.2mm feeder

  Programming method

  Teach panel

  Program storage capability

  99 groups program

  Power supply

  single-phase: AC 220V  f : 50HZ

  Air pressure

  0.4-5kg/cm²

  Work environment

  0℃~40℃

  Machine size(mm)

  L720*W580*H770(mm)

  Weight

  70kg

L332 Automatic Soldering Robot Standard configuration :

Standard configuration:

◎ Automatic Soldring Robot.

◎ X,Y1,Y2,Z,R and wire feeding driving system.

◎ 0.8-1.2mm solder wire feeder

◎ 150W heating system.

◎ Teach panel.
◎ Soldering tip *3 pcs
◎ 1 year parts warranty

Optional configuration:

◎ Customized  fixture.

◎ 150W Soldering tip

◎ 150W Heater
