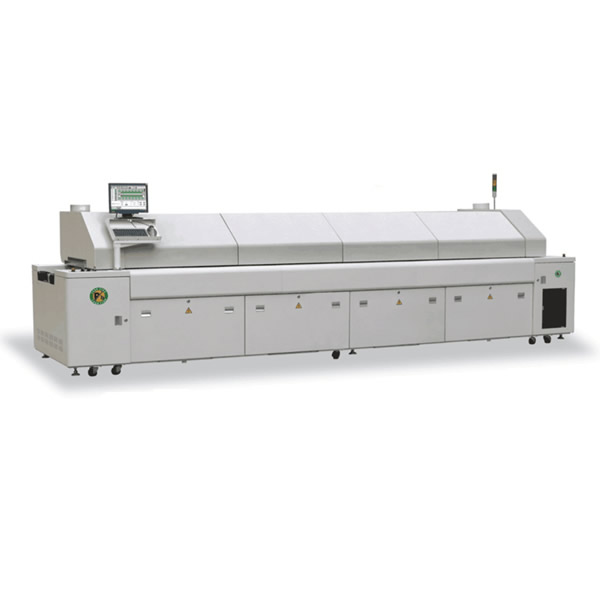

Lead Free Reflow Oven NSF Series Includes: ● Lead Free Reflow Oven ● Industrial PC control system ● Automatic lubricating design by pressure pump ● Flux Recovery system ● Cooling system ● 1 year warranty ● Free Accessories
|
NSF Lead Free Reflow Oven Machine - Specification |
||
|
Model |
NSF-8 |
NSF-10 |
|
Dimension |
L4650*W1370*H1555 |
L5670*W1370*H1555 |
|
Net weight |
about 2500Kg |
about 3000Kg |
|
General power |
59KW |
73KW |
|
Power consumption |
Approx.7.5KW |
Approx.9.5KW |
|
Power Supply |
3PH 380V 50HZ |
|
|
Controlling type |
SIEMENTS PC + PLC controlling |
|
|
Transport Width |
50-400 |
|
|
Component Height |
+25mm/ -20mm |
|
|
Tunnel Length |
2560mm |
3200mm |
|
Heating Zone |
8 temp zones 16 heating modules |
10 temp zones 20 heating modules |
|
Flux Recovery |
Standard |
|
|
Cooling Type |
Upper 2 (air cool) Length: 450mm |
Upper 2 (air cool) Length:900mm |
|
NSF Lead Free Reflow Oven Machine - Specification |
||
|
Model |
NSF-8N |
NSF-10N |
|
Dimension |
L4650*W1370*H1555 |
L5670*W1370*H1555 |
|
Net weight |
about 2500Kg |
about 3000Kg |
|
General power |
59KW |
73KW |
|
Power consumption |
Approx.7.5KW |
Approx.9.5KW |
|
Power Supply |
3PH 380V 50HZ |
|
|
Controlling type |
SIEMENTS PC + PLC controlling |
|
|
Transport Width |
50-400 |
|
|
Component Height |
+25mm/ -20mm |
|
|
Tunnel Length |
2560mm |
3200mm |
|
Heating Zone |
8 temp zones 16 heating modules |
10 temp zones 20 heating modules |
|
Flux Recovery |
Standard |
|
|
Cooling Type |
Upper 2+ Bottom 2 cooling zone (cooling water) (Standard) |
|
|

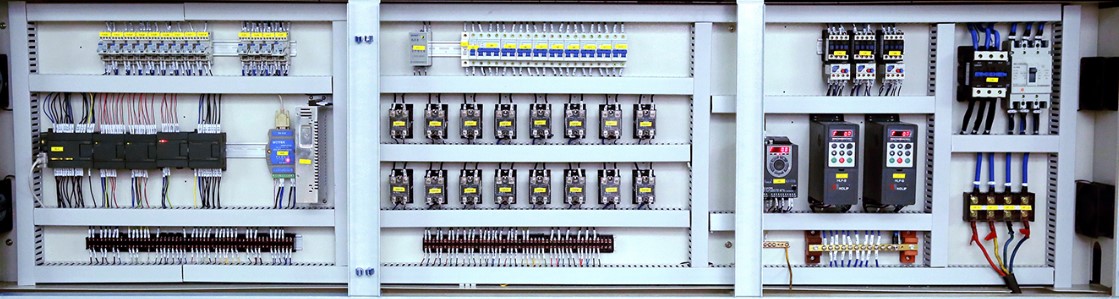

Lead Free Reflow Oven NSF Series Control System: |
|
Electric: PC+ PLC control to ensure the equipment running stable |
|
Software: |
| ● Windows operation interface, support win7 operation system |
|
● Support language switching between English & Traditional/Simplified Chinese |
|
● User Friendly interface |
|
● Perfect temperature profile analysis, storage and invoking function |
| ● Different level of password, operating records |
| ● Real time display the running parameters |
|
● Built-in welding defect analysis manual |
|
● Built-in maintenance manual |
|
|
Lead Free Reflow Oven NSF Series Includes: |
|
● Lead Free Reflow Oven |
|
● Industrial PC control system |
|
● Automatic lubricating design by pressure pump |
|
● Flux Recovery system |
|
● Cooling system |
|
● 1 year warranty |
|
● Free Accessories |
