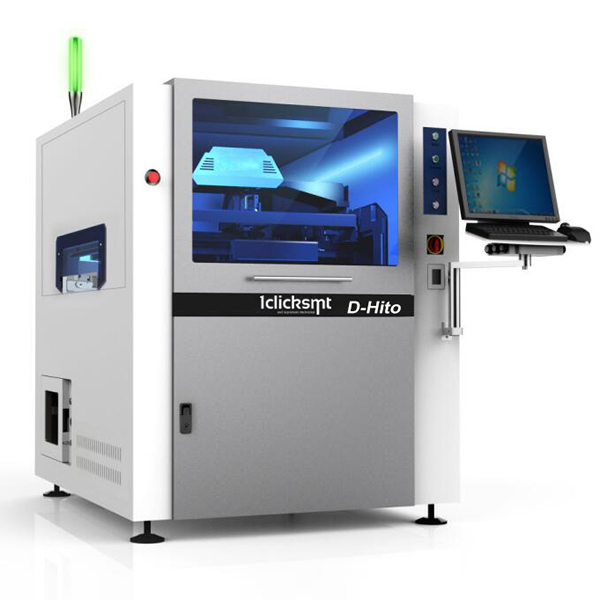

Full automatic visual printing machine D-HITO Milestone, high precision customized product Product features: ▲The whole machine is fully controlled by servo system； ▲Automatic pressure feedback system；
|
Automatic Screen Printer Machine D-Hito Product Options Configuration: |
|
|
|
The rest of solder paste on the stencil monitoring system ● The solder paste inspection sensor before the scraper below remaining paste rolling diameter, intelligent prompt customers to join the solder paste. |
|
|

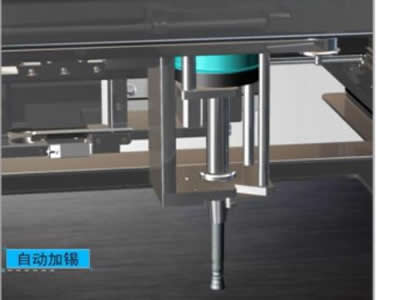

Automatic supply solder paste function ● General solder paste pot add directly ● Can be added at a fixed times ● Can be real-time monitoring the roll diameter of the solder paste on screen, trigger automatically add functionality |
|
|

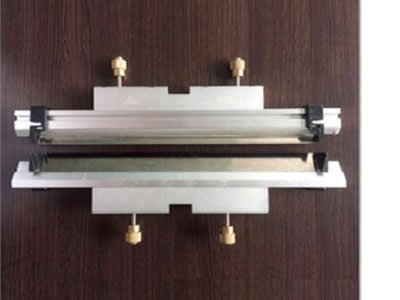

Magnetic scraper ● The magnetic adsorption blade, replace the screw positioning, convenient and quick |
|
UPS power off protection ● After power off a certain time(10minutes) PC can keep the power supply, the protection of prduction data |
|
|
|

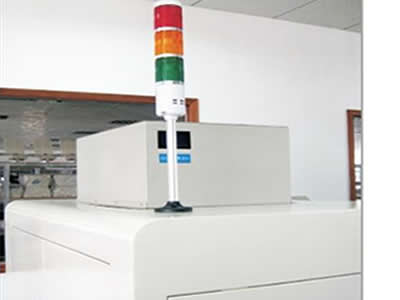

Intelligent temperature control system ● Temperature can be shown and adjustable on the overhead control system ● Temperature can be shown and adjustable on the external control system |
|
|

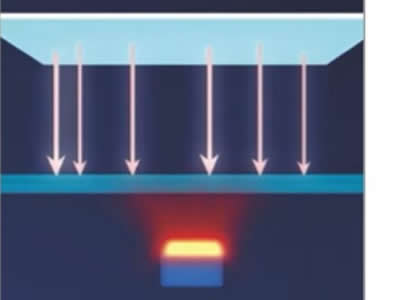

Stencil hole inspection ● Realization of plugging hole, hint whether clean steel net, steel net detect 2 consecutive failure, prompt the customer whether to replace cleaning mode, the frequency or manual cleaning. |
|
|
Industry 4.0 ● Production analysis and real-time statistical information function operation ● Alarm intelligent prompt system and processing solutions |
|
|

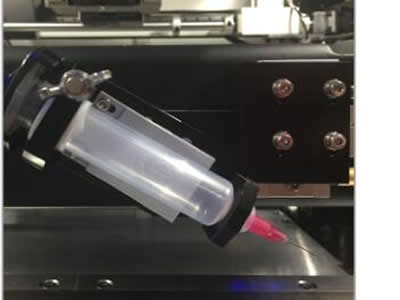

Automatic dispensing function ● It can realize dot, area filling the pount |
|
Manufacturing Execution System ● Custom different communication modes of customers and realize intelligent opertion management |
|
|

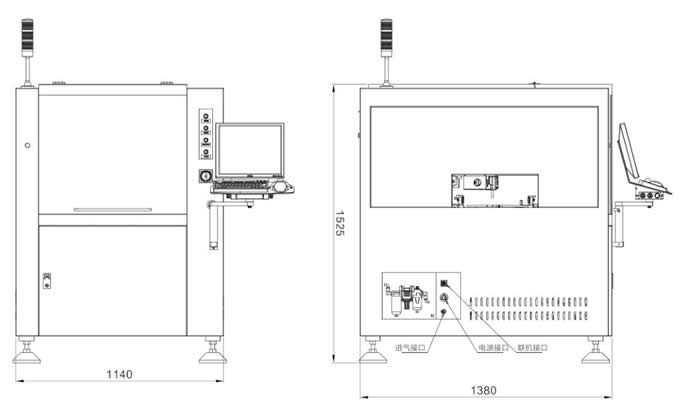

Automatic Screen Printer Machine D-Hito Product size: |
|
|
|
Automatic Screen Printer Machine D-Hito Specification: |
|
|
Model |
D-Hito |
|
Process Parameters |
Specification |
|
Printing Accuracy |
>2Cpk@±18μm@,6☌ |
|
Repeat Position Accracy |
>2Cpk@±8μm@,6☌ |
|
Cycle Time |
7s |
|
Maximum Print Area |
400mm(X)×340mm(Y) |
|
Screen Frame Size |
470mm×370mm-737mm×737mm |
|
Screen Frame Thickness |
25mm-40mm |
|
Print Pressure |
0kg-10kg |
|
Ptint Speed |
1mm/sec-200mm/sec |
|
Print Gap |
0mm-20mm |
|
Substrate Separation |
Speed: 0.1mm/sec to 20mm/sec |
| Distance:0mm to 3mm | |
|
Separation option |
Separation after squeegee up; Squeegee up after separationon by |
|
Apply paste option |
Solder paste, printing ink, silver paste |
|
Transfer System |
Specification |
|
Belt Type |
U gear belt, front rail fixed |
|
ESD Compatibility |
Black transport belts and guides with surface resistivity of greater than 110Ω |
|
Width Adjustment |
Programmable motorized rear rail |
|
Transport Direction |
L→R,L→L,R→L,R→R |
|
Substrate Handling Size(Minimum) |
50mm(X)×50mm(Y) |
|
Substrate Handling Size(Maximum) |
400mm(X)×340mm(Y) |
|
Substrate Thickness |
0.4mm-5mm |
|
Substrate Weight(Maximum) |
≤ 3kg |
|
Substrate Warpage |
≤1% diagonal |
|
Substrate Fixture |
Flexible side clamp |
|
Substrate Underside Clearance |
≤18mm |
|
Vision |
Specification |
|
Multi function image process system |
Fiducial Mark software measurement, twice position, device identification function, Digital camera:1.3million pixels, the camera scene depth 2mm FOV:10*8mm |
|
Fiducial Recognition |
Automatic fiducial teach and find incorporating 0.1mm fiducial capture |
|
Fiducials |
Two or Four Fiducial marks Alignment System |
|
Fiducial Types |
□ spuare, ○ round, △ triangle, + cross, user-defined types |
|
Fiducial Size |
0.1mm-3mm |
|
Fiducial Locations |
Anywhere on substrate |
|
Fiducial Error Recovery |
Auto lighting adjustment |
| Auto fiducial search | |
|
Camera Lighting |
Manual adjustment |
|
2D inspect system |
2D detect soldr printing quality |
|
Electrical configuration and environmental requirements |
Specification |
|
Voltage |
220Volts+/-10%. Single phase 50/60Hz |
|
Power |
2kw |
|
Air Supply |
0.45-0.6kg/cm² |
|
Temperature |
10℃-35℃ |
|
Humidity |
30%-70% relative humidity (non condensing) |
|
Certification |
Specification |
|
CE |
98/37/EC, 89-336/EEC, 73/23/EEC |
|
Acoustic Noise Level |
Less than 87dB |
|
Standatd Configuration |
Specification |
|
Printer Construction |
One piece optimized welded frame |
|
Machine Control |
Four control motion control card |
|
Operation System |
Windows XP, Win7(option) |
|
Operator Interface |
17" DELL display screen, keyboard and mouse and DESEN V2 software, display on the right hand side. |
|
Scraper pressure close loop feedback systemt control system of squeegee pressure |
Program control, screw direct integration closed-loop control |
|
Autmatic positioning module of stencil |
Put the stencil into support frame, the squeegee automatically realizes the positioning of the stencil |
|
PCB Support positioning system |
support block, support pin, vacuum cavity, free combination |
|
Cleaning system |
The diffrent sizd of wipe paper can be used, less paper consumption, solvent agent control module |
|
Machine Iterface |
SEMI Input/Output 4 core internatiol standard interface |
|
Connectivity |
RJ-45LAN (networking) and USB2 interface available |
|
Three color intelligent LED warning light |
Programmable with audible alarm |
|
Documentation |
Hard coopy manuals comprising:Opeartor, Installation, and Electrical Drawings. On board technical manuals and tutorals supporting operator functions. |
|
Parallel platform |
Servo motor drive, parallel platform positioning algorithm to improve the postitoning speed and accuracy |
|
Aoutomatic platform detection system |
The platform height is automticlly calibrated according to the thickness of the plate |
|
Intelligent compensation platform |
X,Y, θmulti axis independent adjustment |
|
Intelligent transmission system |
The automatic limit device + automatic positioning substrate +left into the left, the left into right, right into the right, right into the left out |
|
Approximate Dimensions |
1140(L)×1380(W)×1525(H)mm |
|
Approximate Weight |
1300kg boxed (dependent upon configured options selected wiht machine) |
| 1100kg unboxed (dependent upon configured options selected wiht machine) | |
|
Software & Communications |
Specification |
|
Software intelligent backup module |
Database automatic backup, software upgrade is not lost |
|
Maintenance early warning function |
Machine wire rod, slide block, motor and other automtic maintenance message |
|
Printing parameter intelligent module |
Customer select the type of production, like FPC, LED, Phone PCB the printer can give the parameter automatically. |
|
Recovery system of solder paste |
The fixed frequency to recovery the solder paste into the printing area. |
|
Handing & Cleaner Options |
Specification |
|
Substrate Handing Size (maximum) |
Long board options--maximum extend to 510*340mm, CCD scope biggest 400*340mm |
|
Under Stencil Cleaning |
Largest clean drops drench type 500mm size |
