High Speed LED&Lens Mounter CM-V8
CM-V8 Equipped with 8 spindles * 1 gantry and X/Y linear motor which makes machine running fast and stably, max LED mounting speed can readh 40,000 pcs/Hour, Lens mounting speed can reach 18, 000 pcs /hour.
Available Options
High Speed LED&Lens Mounter CM-V8 Features |
| Realizes high Placement Speed of 40,000 CPH for LED, 18,000 CPH for Lens |

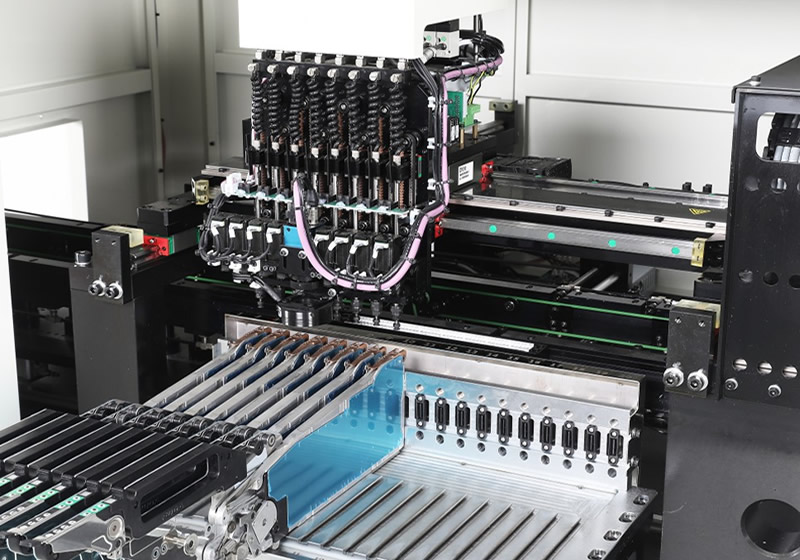

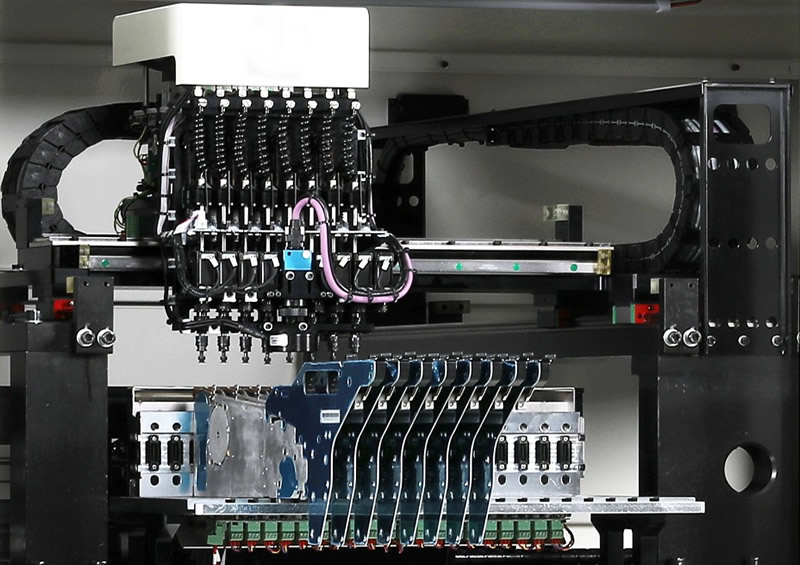

8 spindles * 1 grantry driven by linear motor. |
 |
| Suitable parts and boards: |
● Applicable to parts:LED 3014, 3020, 3528, 2835, 5730, 5630, 5050, 7030 and Resistor 0805, 1206. Lens. ● Applicable to Max. 1200(L) x 460(W) PCBs for long boards applied to LEDs and lens. |
Solid granite platform, X/Y axis driven by linear motor, ensure machine running fast and stably. Electronic feeder ensure stable compoment feeding. High quality parts ensure long service life of machine. |
 |

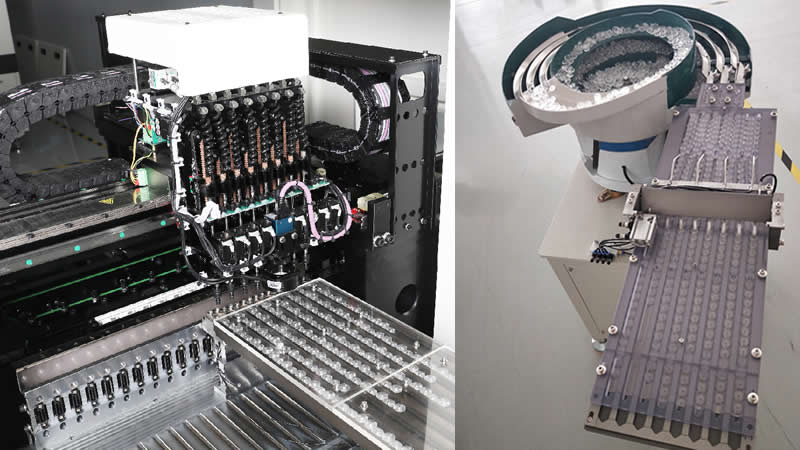

| 8 Channel lens vibration bowl feeder for lens mounting.(Option) |
 |
|
High Speed LED&Lens Mounter CM-V8 Specifications |
|
|
Machine model |
CM-V8 |
|
Alignment |
Flying vision |
|
Number of Spindles |
1 head *8 spindles |
|
Driving method |
X /Y with linear motor, Z with step motor |
|
Mounting speed |
Max 40,000 CPH for mounting LED, 18000CPH for mounting lens |
|
Component range |
LED 3014, 3020, 3528, 2835, 5730, 5630, 5050, 7030 and Resistor 0805, 1206, lens. Max component height: 12mm |
|
PCB |
Max 460(W)*1200(L)mm, thickness: 0.5 to 3.0mm |
|
Conveyor |
900+/-20mm |
|
Feeder station |
20 pcs *12mm feeder |
|
Power supply/air pressure |
1P, AC 220V /50HZ, 0.5~0.7Mpa |
|
Power |
3.2KW |
|
Machine weight |
Approx 1600KG |
|
Machine size |
2000(L)*1400(W)*1400(H)mm |
