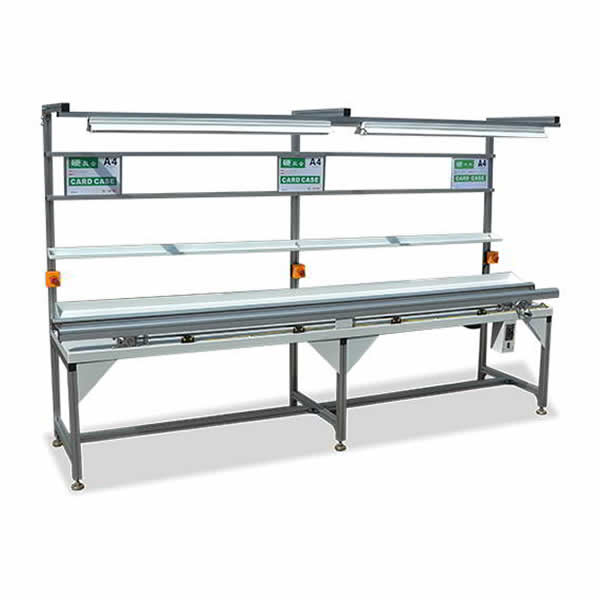

3M Double Side Insertion Conveyor MI-3000D
The Insertion conveyor adopt quality motor with speed controller, guide rail with pin chain and driving mechanism, runs smooth and low noise, equipped with component box, LED light, it is very suitable for through hole assembly line.
Available Options
|
3M Double Side Insertion Conveyor MI-3000D Features: |
|
1. 3000mm Aluminum conveying guide rail. |
|
2. 40 x 40 mm aluminium profile, thickness :1.5mm. |
|
3. 35B pin chain(5mm). |
|
4. Equipped with LED light. |
|
5. Equipped with quality 60W conveying motor with speed controller, runs smooth and low noise. |
|
6. Equipped with 2 component box. |
|
7. Equipped with process card bracket. |
|
8. ESD ground socket. |
|
3M Double Side Insertion Conveyor MI-3000D Specification： |
|
|
Model |
MI-3000D |
|
Conveying width |
50-350mm |
|
Conveying height |
750±30mm |
|
Conveying direction |
Left to right |
|
Conveying speed |
0-5M/min |
|
Power supply |
1P 220V50/60HZ |
|
Overall dimension |
L=3000mm W=1290mm H=1865mm |
|
Power |
200W |
|
3M Double Side Insertion Conveyor MI-3000D Option: |
|
1.Manual stop switch button |
|
2.Stopping cylinder with foot pedal *3 set |
