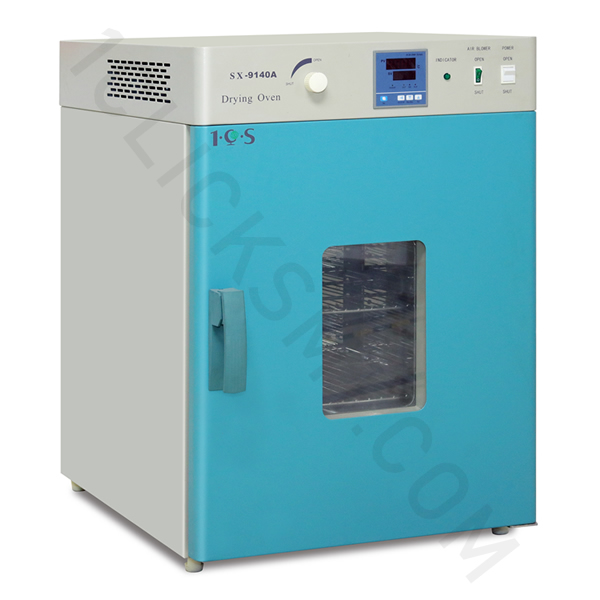

Versatile, affordable drying system suited to a number of applications like PCB baking & drying. (Bigger capacity than dektop series)

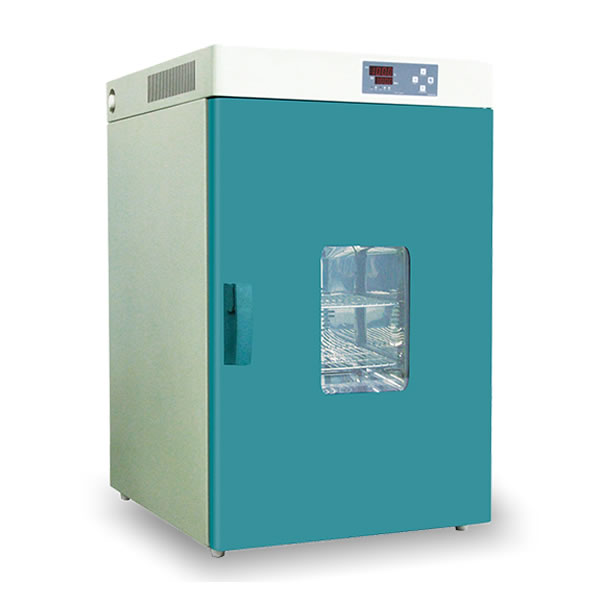

Vertical Drying Oven Series Feature
|
● Polished stainless-steel chamber. |
|
● Latest PID controller. |
|
● Uniform distribution of air temperature. |
|
● Forced-air convection. |
|
● Independent temperature-limiting alarm system ensures experiments run safely. (option) |
|
● RS485 connector is option which can connect computer to record the parameters and the variations of temperature. (option) |
|
● Forced-air convection system consists of a fan keeping running under a high temperature and proper air ducts to ensure a uniform distribution of temperature in chamber. |
|
Vertical Drying Oven - Specifications |
|||||||
|
Model |
SX |
SX |
SX |
SX |
SX |
SX |
SX |
|
Temperature Range |
Model with “A” post-fixed has a temperature range of +10~250℃ and model with “B” post-fixed has a temperature range of +10~300℃. |
||||||
|
Temperature Control |
0.1℃ |
||||||
|
Temperature Stability |
±0.5℃ |
||||||
|
Electrical equirements |
220V 50Hz |
380V 50Hz |
|||||
|
Input Power |
550W |
1050W/1240W |
1500W/1740W |
2100W/2500W |
4000W/4500W |
4500W/4800W |
6000W/6500W |
|
W×D×H Interior Dimension(mm) |
340*320*320 |
400*350*500 |
450*550*550 |
500*600*750 |
600*550*1300 |
800*600*1300 |
1000*600*1600 |
|
W×D×H Overall Dimension(mm) |
485*500*620 |
600*550*755 |
600*710*845 |
650*755*1045 |
745*750*1670 |
945*800*1690 |
1140*800*2150 |
|
Shelves per Chamber(Normal) |
2pcs |
3pcs |
4pcs |
5pcs |
|||
|
Timing Range(mm) |
1-9999min |
||||||
|
Characteristic |
Digital display, microcomputer controller, double tempered-glass observation window, adjustable air flow of both air inlet and outlet, mirror-surface stainless-steel inner tank, four circular corners, optional smart programmable temperature controller, model without “A” post-fixed means galvanized-steel tank |
||||||
