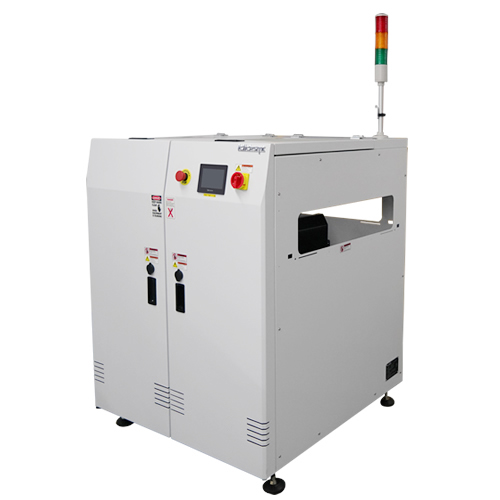

Turn Conveyor Series
The turn conveyor is designed to change the flow direction of a PCB assembly line. The PCB is transferred onto the built-in ESD belt conveyor, which turns either clockwise or counter-clockwise.
Available Options
Turn Conveyor Series Features
|
● Pannasonci PLC Program control. |
|
● By-pass mode selectable. |
|
● PCB direction flows can be customized. |
|
● Towerlight display for machine status. |
|
● Enclosed design with built-in torque limiter ensures highest level of safety |
|
● Conveyor width adjustment using hand crank. |
|
● SMEMA compatible. |
Turn Conveyor Series Specifications
|
● Transport height: |
910mm ±30mm |
|
● Transfer direction: |
Left to right |
|
● Operation side: |
Front of the machine |
|
● Fixed rail: |
Front of the machine |
|
● Interface: |
SMEMA |
|
● Conveyer concept: |
ESD belt (round or flat) |
|
● Belt speed: |
0.5-20m/min adjustable |
|
● PCB edge support: |
3mm |
|
● Power supply: |
230 VAC/50 Hz/1 Ph |
|
● Power consumption: |
150VA max. or specify |
|
● Cycle time: |
± 5 seconds |
|
Model |
TRC250M |
TRC330L |
TRC390LL |
TRC460XL |
|
Machine Dimension (L x W x H) |
600 x 700 x 1200 |
580 x 580 x 1200 |
700 x 700 x 1200 |
750 x 750 x 1200 |
|
Weight |
120kg |
190kg |
220kg |
260kg |
|
PCB length |
50mm - 330mm |
50mm - 450mm |
50mm - 530mm |
50mm - 530mm |
|
PCB width |
50mm - 250mm |
50mm - 330mm |
50mm - 390mm |
50mm - 460mm |
|
PCB Thinckness |
0.6mm – 4.5mm |
0.6mm – 4.5mm |
0.6mm – 4.5mm |
0.6mm – 4.5mm |
|
Magazine Dimensions (max.) |
355 x 320 x563 |
460 x 400 x 560 |
535 x 460 x 570 |
535 x 530 x 570 |
|

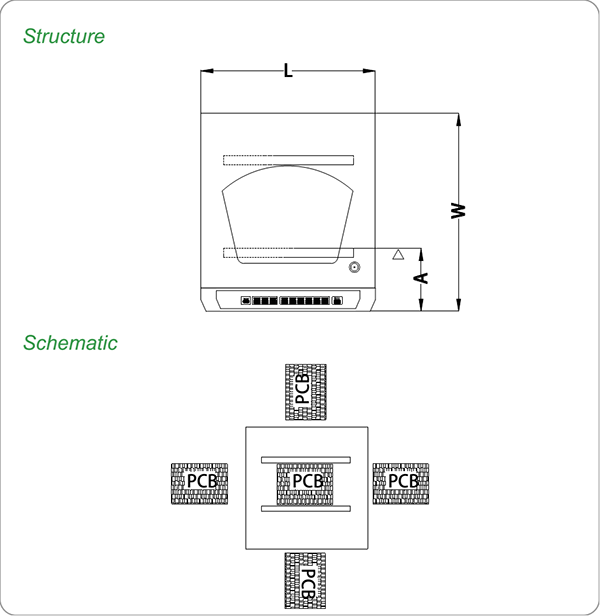

Fixed rail to front dimension(A) |
180mm |
180mm |
180mm |
180mm |
* Customized is available
Turn Conveyor Series Options
|
● Automatic width adjustment. (set in touchscreen) |
|
● Good or bad board separation |
|
● Touchscreen instead of button panel. |
|
● Cantilevered input-or output conveyor (length 500 mm) |
| ● Other options available on request. |
