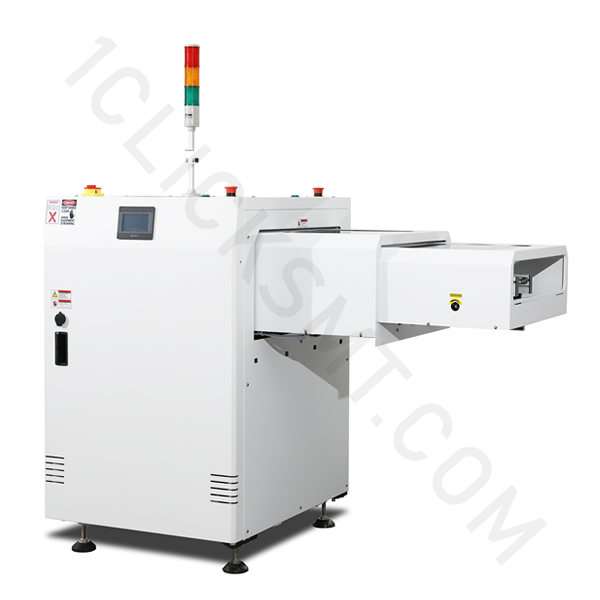

Telescopic Conveyor Series

init sku time:

The unit provides a 'normal open' passage in a PCB assembly line. An integrated conveyor segment slides across the opening to deliver PCB to downstream machine.

Available Options

Telescopic Conveyor Series Features

● Pannasonic PLC Program control.

● Fully enclosed design.

● Normal Opened.

● Electrically driven for smooth extension and retraction.

● Smooth and parallel width adjustment.(lead screw).

● SMEMA compatible.

Telescopic Conveyor Series Specifications

● Transport height:

910mm ±30mm

● Transfer direction:

Left to right

● Operation side:

Front of the machine

● Fixed rail:

Front of the machine

● Interface:

SMEMA

● Conveyer concept:

ESD flat belt

● Belt speed:

0.5-20m/min adjustable

● PCB edge support:

3mm

●Components clearance: Bottom 30 mm or specify

● Power supply：

230 VAC/50 Hz/1 Ph

● Power consumption:

100VA max. or specify

● Machine cycle time:

± 16 seconds

● Passageway:

750mm or specify

●Load bearing: 1.5kg/PCB
Telescopic Conveyor Series.png

  Model

  CYT330L

  CYT460XL

  Machine Dimension (L x W x H)

  1500 x 730 x 1300

  1500 x 860 x 1300

  Weight

  150kg

  180kg

  PCB length

  50mm - 457mm

  50mm – 530mm

  PCB width

  50mm - 330mm

  50mm – 460mm

  PCB Thinckness

  0.6mm – 4.5mm

  0.6mm – 4.5mm

  Fixed rail to front dimension(A)

  258mm

  258mm

* Customized is available

Telescopic Conveyor Series Options

● Passageway length is customized.

● Automatic width adjustment (set in touchscreen).

● Normal closed operation.(750 mm passage way)

● Other options available on request.
