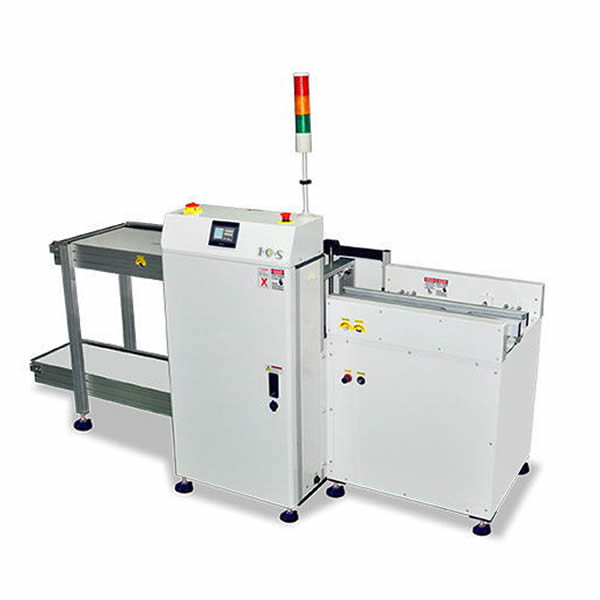

Multi Magazine Loader & Unloader 2 In 1
The unit provides automatic magazine change-over for continuous AOI/SPI system loading and unloading. Boards out/in at the same side of AOI/SPI, and board is sent out from magazine to AOI/SPI system and back to same slot after inspection.
Available Options
Multi Magazine Loader & Unloader 2 In 1 Features
|
● Pannasonic PLC Program control. |
|
● Selectable pitch settings. |
|
● Towerlight display for machine status. |
|
● Automatic magazine change-over |
|
● Flexible platform to suit standard magazines. |
|
● Conveyor width adjustment using hand crank. |
|
● Regulated pressure on attached pneumatic pusher. |
|
● Pusher position adjustable to centre of the magazine. |
|
● User friendly “soft touch” LED membrane control panel. |
|
● SMEMA compatible. |
Multi Magazine Loader & Unloader 2 In 1 Specifications
|
● Transport height: |
950mm ±30mm |
|
● Transfer direction: |
Left to right |
|
● Operation side: |
Front of the machine |
|
● Fixed rail: |
Front of the machine |
|
● Interface: |
SMEMA |
|
● Conveyer concept: |
ESD belt（round or flat) |
|
● Belt speed: |
16m /min adjustable |
| ●PCB edge support: | 3mm |
| ●Components clearance: |
Top 30 mm, bottom 30 mm (depends on pitch) |
|
● Power supply: |
230 VAC/50 Hz/1 Ph |
|
● Power consumption: |
350VA max. or specify |
|
● Air supply: |
≥6 bar |
|
● Air consumption: |
10 ltr/min max. |
|
● PCB unloading time: |
±6 seconds |
|
● Pitch distance: |
10.20.30.40mm pitch or specify. |
| ● Total number of magazines: |
* 1 mgazine on the lifter platform. * 1 empty magazine on the upper magazine conveyor * 2 full magazines on the lower magazine conveyor * or specify |
|
Model |
DLDB250M |
DLDB330L |
DLDB390LL |
DLDB460XL |
|

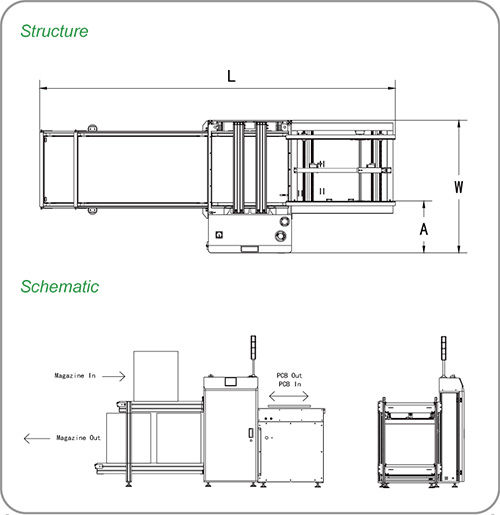

Machine Dimension (L x W x H) |
1930 x 760 x 1250 |
2220 x 845 x 1250 |
2660 x 909 x 1250 |
2660 x 979 x 1250 |
|
Weight |
250kg |
280kg |
320kg |
350kg |
|
PCB length |
50mm - 330mm |
50mm - 445mm |
50mm - 530mm |
50mm - 530mm |
|
PCB width |
50mm - 250mm |
50mm - 330mm |
50mm - 390mm |
50mm - 460mm |
|
PCB Thinckness |
0.6mm – 4.5mm |
0.6mm – 4.5mm |
0.6mm – 4.5mm |
0.6mm – 4.5mm |
|
Magazine Dimensions (max.) |
355 x 320 x563 |
460 x 400 x 563 |
535 x 460 x 570 |
535 x 530 x 570 |
|
Fixed rail to front dimension(A) |
364mm |
364mm |
364mm |
364mm |
* Customized is available
Multi Magazine Loader & Unloader 2 In 1 Options
|
● Additional magazine capacity. |
|
● Enclosed construction improve level of safety. |
| ● Width adjustable magazine conveyor(s). |
| ●Other options available on request. |
