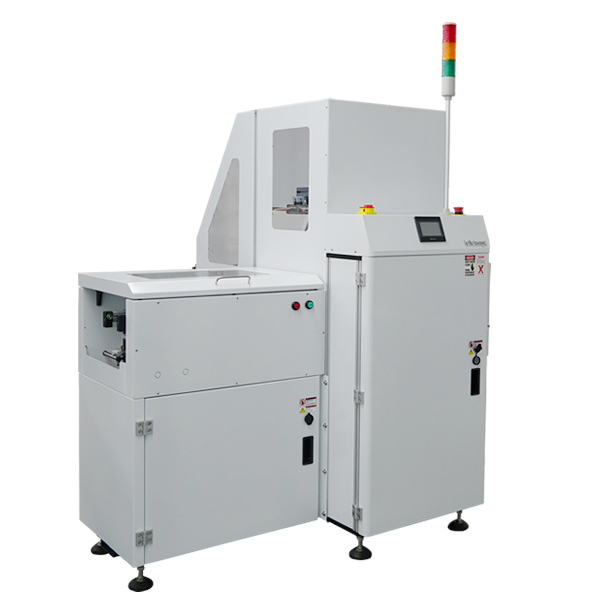

Multi Function Buffer Stocker Series

The single magazine buffer can be used as a mid-line loader or unloader, as a LIFO buffer or as a reject buffer.

Multi Function Buffer Stocker Series Features

● 5 operation modes available:
Buffer mode (LIFO)

Unload mode

Load mode

Reject mode

By-pass mode

● Pannasonic PLC Program control.

● Selectable pitch settings.

● Dual function pusher conveyor.

● Towerlight display for machine status.

● Additional mgazines buffing capacity available upon request.

● Exchange magazine from the rear of the machine.

● Automatic magazine alignment by upper-and lower pneumatic lamping.

● Regulated pressure on attached pneumatic pusher.

● Pusher position adjustable to centre of the magazine.

● SMEMA compatible.

Multi Function Buffer Stocker Series Specifications

Model	STA250M	STA330L	STA390LL	STA460XL
Machine Dimension (L x W x H)	1250 x 1200 x 1700	1500 x 1400 x 1700	1560 x 1520 x 1700	1760 x 1520 x 1700
Weight	140kg	200kg	240kg	280kg
PCB length	50mm - 330mm	50mm - 445mm	50mm - 530mm	50mm - 530mm
PCB width	50mm - 250mm	50mm - 330mm	50mm - 390mm	50mm - 460mm
PCB Thinckness	0.6mm – 4.5mm	0.6mm – 4.5mm	0.6mm – 4.5mm	0.6mm – 4.5mm
Magazine Dimensions (max.)	355 x 320 x563	460 x 400 x 563	535 x 460 x 570	535 x 530 x 570

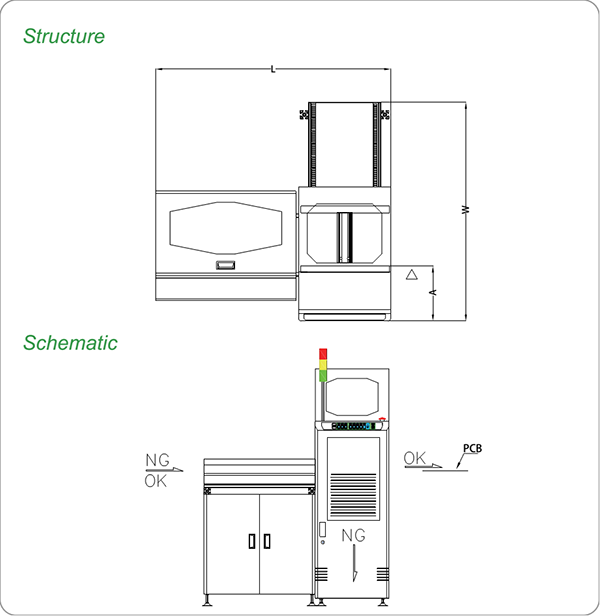

Fixed rail to front dimension(A)	270mm	270mm	270;mm	270mm
