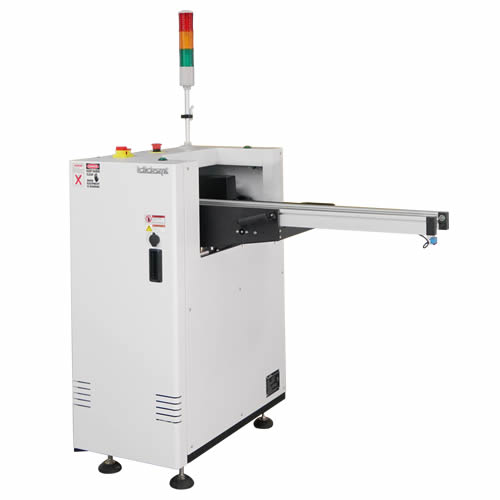

Manual Lift Gate Conveyor Series

init sku time:

By manual lifting the conveyor section, access is gained to the rear of the line.

Available Options

Manual Lift Gate Conveyor Series Features

● Pannasonic PLC Program control.

● Locking cylinder to avoid opening during PCB transfer.

● Ergonomic air pressure supported opening and closing.

● Smooth and parallel width adjustment.(lead screw).

● SMEMA compatible.

Manual Lift Gate Conveyor Series Specifications

● Transport height:

910mm ±30mm

● Transfer direction:

Left to right

● Operation side:

Front of the machine

● Fixed rail:

Front of the machine

● Interface:

SMEMA

● Conveyer concept:

ESD flat belt

● Belt speed:

0.5-20m/min adjustable

● PCB edge support:

3mm

●Components clearance: Bottom 30 mm or specify

● Power supply：

230 VAC/50 Hz/1 Ph

● Power consumption:

100VA max. or specify

● Machine cycle time:

± 16 seconds

● Passageway:

600mm or specify

● Air supply:

4-6 bar

● Air consumption:

35 ltr /lift max.

●Load bearing:  1.5kg/PCB
Manual Lift Gate Conveyor.png

  Model

  CYM330L

  CYM460XL

  Machine Dimension (L x W x H)

  1000 x 1100 x 1310

  1000 x 980 x 1310

  Weight

  180kg

  230kg

  PCB length

  50mm - 445mm

  50mm – 530mm

  PCB width

  50mm - 330mm

  50mm – 460mm

  PCB Thinckness

  0.6mm – 4.5mm

  0.6mm – 4.5mm

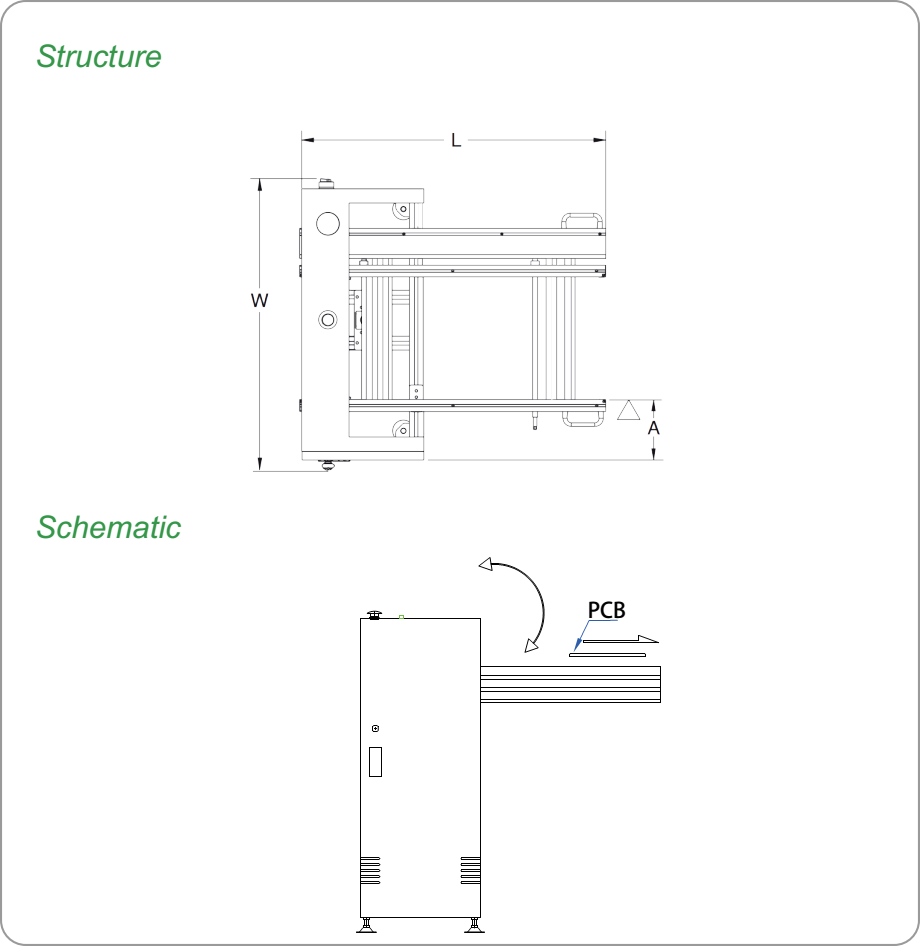

  Fixed rail to front dimension(A)

  190mm

  190mm

* Customized is available

Manual Lift Gate Conveyor Series Options

● Passageway length is customized.

● Electrical width adjustment.

● Other options available on request.
