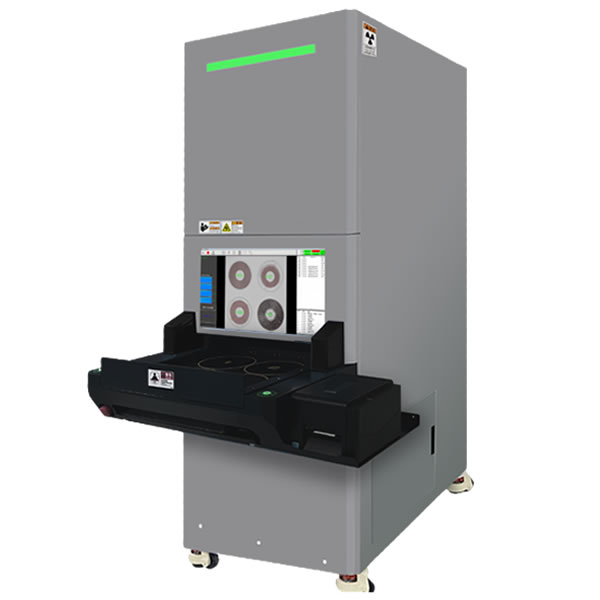

The equipment is mainly composed of microfocus X-ray source, large area imaging unit, mechanical motion mechanism, electrical control system, image processing system, security protection system; Integrating modern nondestructive testing, computer software technology, image acquisition and processing technology, mechanical transmission technology into one system, covering four major technical fields of optical, electro-mechanical and digital image processing. SoYi-C3 has a beautiful appearance, it can cover all the resistance and capacitance sensing and IC materials, The off-line intelligent X-ray counting system can realize the rapid counting and inventory of various types of material Tray, such as 7-17 inch material Tray/ JEDEC Tray/IC tide sensitive bag and other materials
|

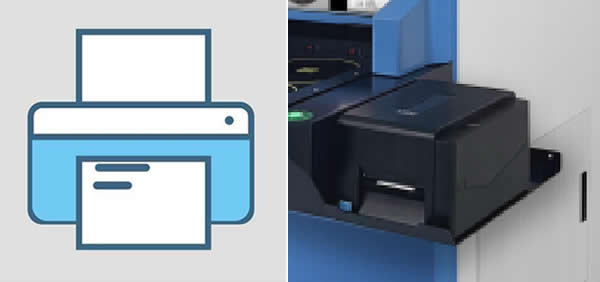

The function of inductive printing ● The function of inductive printing label effectively prevents the wrong, random and missing bar code, and improves the accuracy of information input. |
|

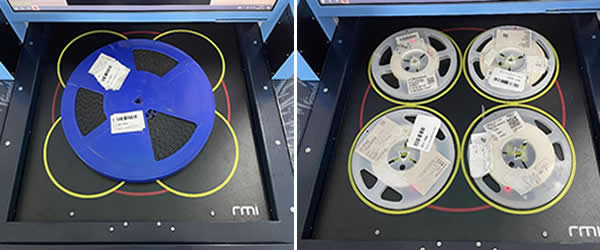

Select single / multiple counting ● Select single / multiple counting mode according to requirements. |
|

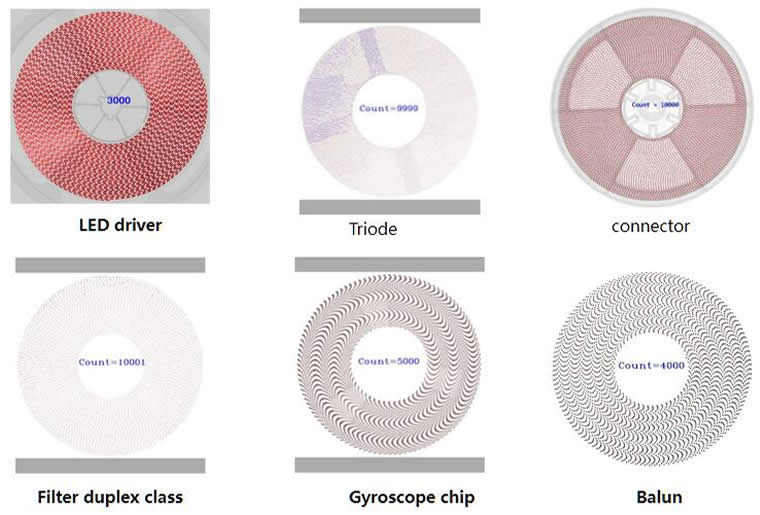

Applicable components |
|
|
|
|
|
|
SoYi-C3 Features | |
Function: | ● Inductive printing label. |
● Select 1 / 4 reel counting mode according to requirements. | |
● Data management | |
| |
Advantage:

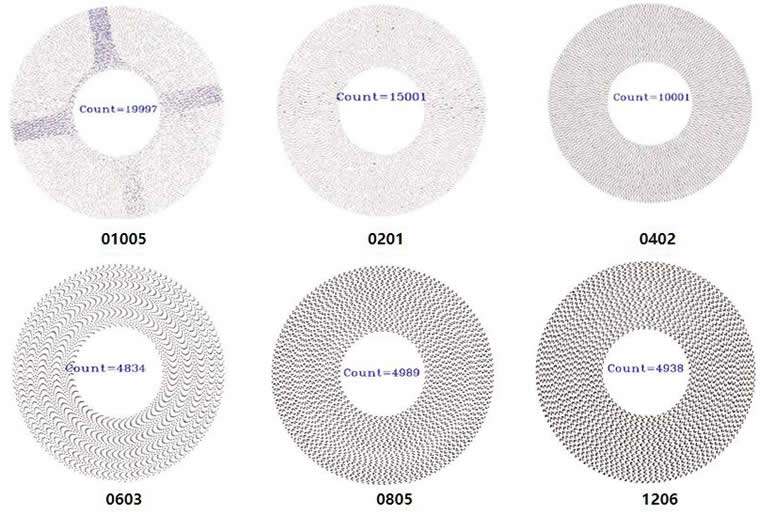

| ● 0201 component detect accuracy >99.99%. |
● Suited for bulk, multiple reel component. | |
● Automatic fluoroscopic imaging, automatic analysis and automatic counting. | |
● Touchscreen display, save space. | |
● Read all labels on the reel. | |
● Can count different reel at same time, automatically generate number and counting. | |
● Fast speed counting within 6- 10s. | |
● Reduce the number of processes, shorten the process route, improve efficiency. | |
| ● quipped with database, provide query printing. | |
SoYi-C3 Specification | |||
| Hardware | X-Ray Source | Type | Enclosed |
| Tube volatge | 50/80kV | ||
| Tube current | 1000μA | ||
| Focus spot size | 0.03mm | ||
| Imaging | Type | FPD | |
| Detect area | 430*430[mm] | ||
| Pixel matrix | 3072*3072[pixel] | ||
| Pixel accuracy | ≤2um | ||
Computer | Type | Industrial PC, 1TB+.I7 10 generation | |
| Display | 24”HD display | ||
Detect capability | Computer | 4”-15" (max diameter 415mm) | |
| Max height | ≤80mm | ||
| Detect accuracy | ≥99.9% | ||
| Detect time | 7”~17”:<12s/Reel; 7”*4 reel :<10s。 | ||
| Whole machine | Machine size | 730(L)*1460(W)*1960(H)mm | |
| Weight | Approx 450kg | ||
| Power supply | 1P, 220V 50Hz | ||
| Max power | 1.5kW | ||
| Radiation leakage dose | < 1μSv/h | ||
| Warranty | 1 year | ||
