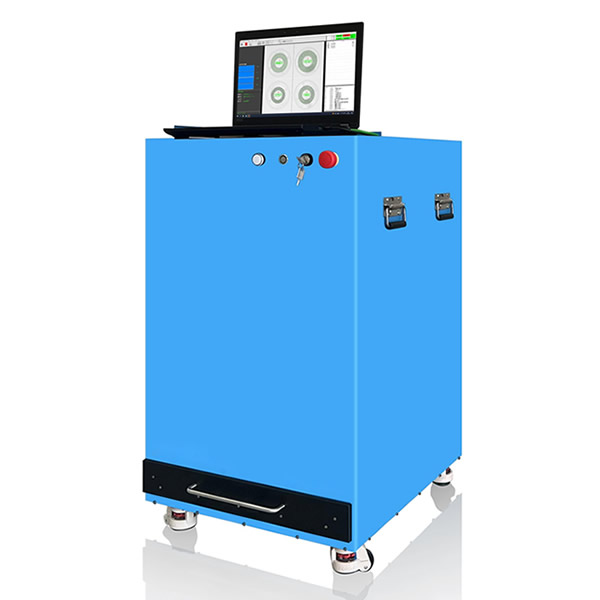

The equipment is mainly composed of microfocus X-ray source, large area imaging unit, mechanical motion mechanism, electrical control system, image processing system, security protection system; Integrating modern nondestructive testing, computer software technology, image acquisition and processing technology, mechanical transmission technology into one system, covering four major technical fields of optical, electro-mechanical and digital image processing. SoYi-C2 has a beautiful appearance, it can cover all the resistance and capacitance sensing and IC materials, The off-line intelligent X-ray counting system can realize the rapid counting and inventory of various types of material Tray, such as 7-17 inch material Tray/ JEDEC Tray/IC tide sensitive bag and other materials SoYi-C2 has compact size, which even can be placed in a truck for component counting, very easy for operation.
|
|

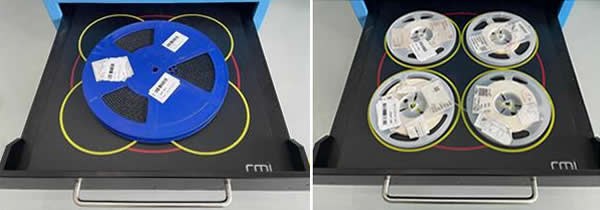

Select single / multiple counting ● Select single /multiple counting mode according to requirements. |
|
SoYi-C2 Algorithm |
|
|

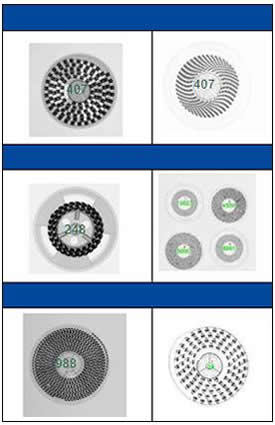

AI algorithm： |

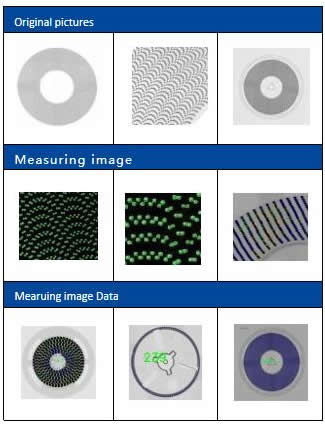

calculation image： |
|
|
|

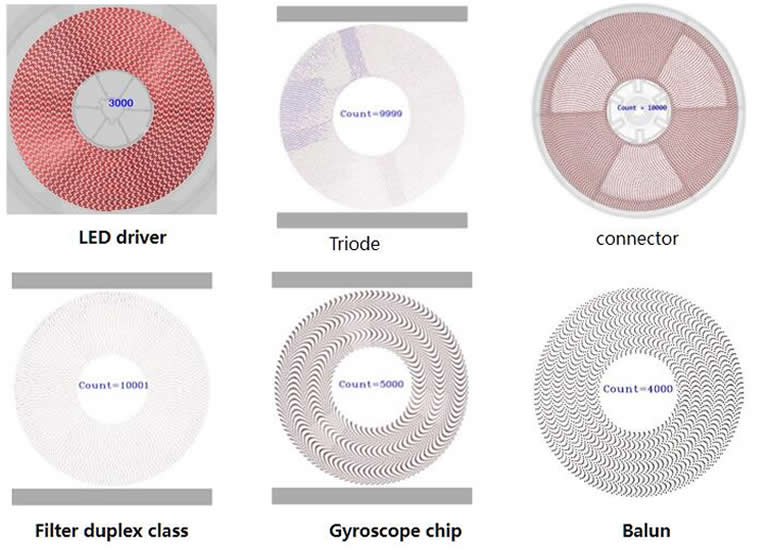

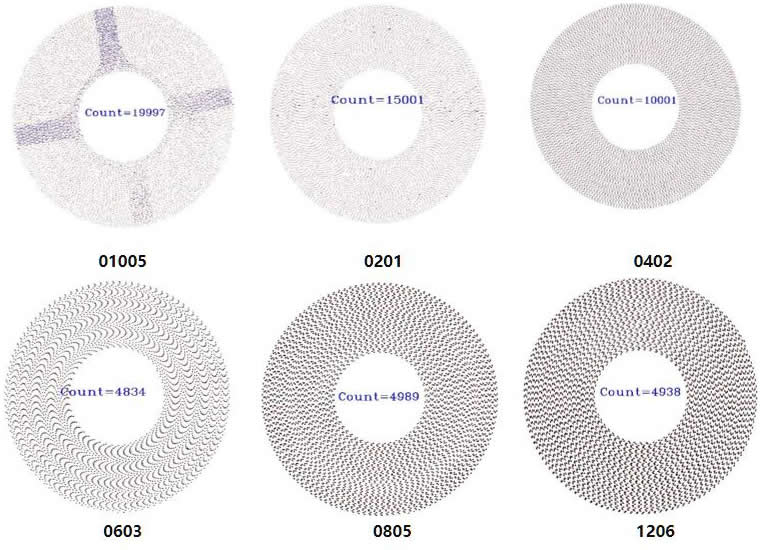

Applicable components |
|
|
|
|
|
|
|
SoYi-C2 Features |
|
|
Function: |
● Compact size, easy for counting on different places. |
|
● Select 1 / 4 reel counting mode according to requirements. |
|
|
● Data management |
|
|
|
|
|
Advantage: |
● 0201 component detect accuracy >99.99%. |
|
● Suited for bulk, multiple reel component. |
|
|
● Automatic fluoroscopic imaging, automatic analysis and automatic counting. |
|
|
● Read all labels on the reel. |
|
|
● Can count different reel at same time, automatically generate number and counting. |
|
|
● Fast speed counting within 6- 10s. |
|
|
● Reduce the number of processes, shorten the process route, improve efficiency. |
|
|
● Equipped with database, provide query printing. |
|
|
|
|
|
SoYi-C2 Specification |
|||
| Hardware |
X-Ray Source |
Type | Enclosed |
| Tube volatge | 50/80kV | ||
| Tube current | 1000μA | ||
| Focus spot size | 0.03mm | ||
| Imaging | Type | FPD | |
| Detect area | 430*430[mm] | ||
| Pixel matrix | 3072*3072[pixel] | ||
| Pixel accuracy | ≤2um | ||
|
Operation system |
Operation system | Windows 10 | |
|
Detect capability |
Reel size | 4”-15" (max diameter 415mm) | |
| Max height | ≤80mm | ||
| Detect accuracy | ≥99.9% | ||
| Detect time | 7”~17”:<12s/Reel; 7”*4 reel :<10s。 | ||
| Whole machine | Machine size | 600(L)*650(W)*1415mm including printer | |
| Weight | Approx 50kg | ||
| Power supply | 1P, 220V 50Hz | ||
| Radiation leakage dose | < 1μSv/h | ||
| Warranty | 1 year | ||
