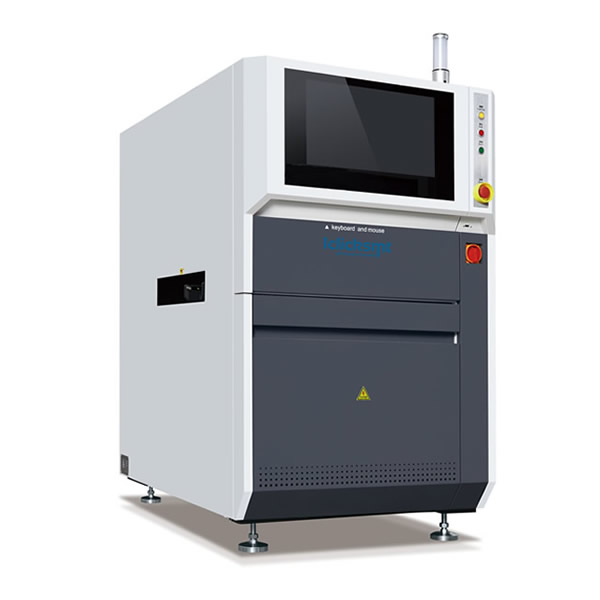

Automatic Inkjet Printing System PM-450
PM-450 is a fully automatic inkjet printing machine for printing 1D code, 2D QR code on the surface of PCB. It consists of ink jet printing system, X/Y/R precision motion platform, CCD visual system for PCB positioning and barcode scanning, conveyor with automatic width adjustment.
Available Options
|
|
● PM-450 adopt High quality KGK inkjet printing system which ensures high quality inkjet printing with high printing speed. ● 1D code: ITF, NW7, JAN, code 39, code 128,2D:data matrix, QR, etc. |
|
|
|
|
|
● X/Y/R axis adopt Panasonic servo motor with it's control system with high precison ball screw and linear guide rail which ensures high accuracy of motion system. |
|
|

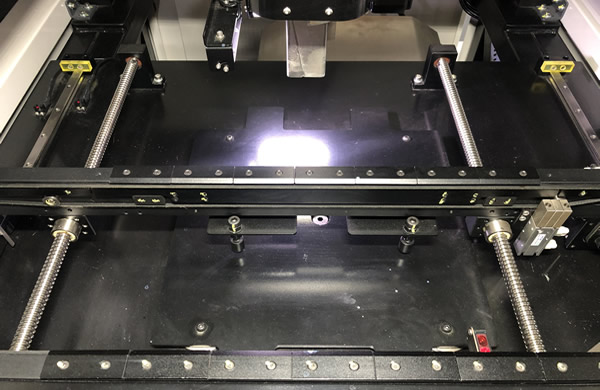

● Automatic width adjustment and PCB clamping device. |
|
Automatic Inkjet Printing System PM-450 Description : |
|
1. Inline inkjet printing system PM-450 with compact size, can be easliy intergrated into production line help you realize automation. |
|

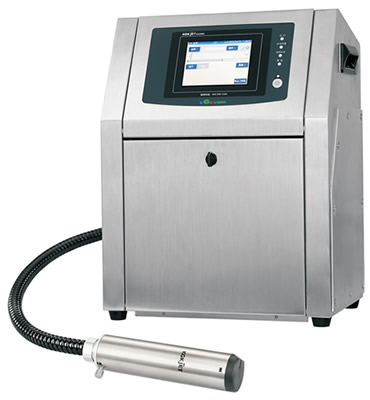

2. PM-450 adopt famous brand KGK inkjet printing head which ensures high quality inkjet printing with high printing speed. |
|
3. Capable to print 1D barcode: CODE39 EAN128 DM, 2D QR etc. |
|

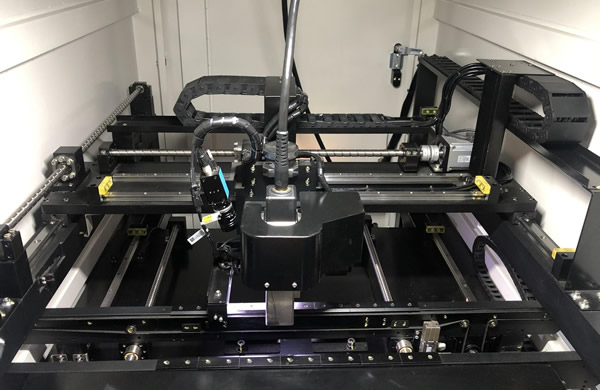

4. X/Y axis adopt servo motor control system with high precison ball screw and linear guide rail which ensures high accuracy of motion system. |
|
5. CCD with fiducial recognition system automatically correct the offset of PCB position and automatic scan the printed barcode. |
|
6. PM-450 is capable to connect with customer MES system to capture. txt barcode from MES system then print it (option). |
|
7. Industrial PC, full English interface with Windows 7 OS. |
|
Automatic Inkjet Printing System PM-450 specification: |
||
|
Model |
PM-450 |
|
|
Inkjet Printing System |
Inkjet printing system | KGK CSS 3000L printing head |
| Max printing rows | 5 | |
| Suitable material | PCB | |
| Repeatable printing accuracy | ±0.05mm | |
| Printing resolution | 115 DPI | |
| Printing speed | 2,041 charcter /sec, 50um (according to font type) | |
| Printing direction | 0-360 degree | |
| Barcode type | 1D code: ITF, NW7, JAN, code 39, code 128, 2D:data matrix, QR,etc. | |
| Positioning system | CCD+mark recognition | |
|
PCB parameter |
Max PCB Size | L450*W450mm |
| PCB Thickness | 0.5—3mm | |
| PCB edge width | 5mm | |
| Max load | ≦2Kg | |
|
PCB parameter |
Axis number | 3 axis, X/Y axis driven by servo motor, R axis driven by step motor |
|
Conveying system |
PCB Clamping system | lower clamping |
| Conveying System | 920+-30mm, left-right ro right-left | |
| Communication | SMEMA , Ethernet | |
|
PC and software |
Industrial PC, LCD monitor, keyboard&mouse | |
| Windows 7 operation system, English interface of software | ||
|
Utility |
Power supply | 1PH AC 220V, 50/60HZ |
| Air requirement | 0.5-0.7Mpa, 10L/min. | |
| Power | 1.5KW | |
| Machine size | W 950*D 1460*H1650mm(not including light tower) | |
| Machine weight | approx 600Kg | |
|
Automatic Inkjet Printing System PM-450 configuration: |
|
Standard configuration: |
|
● Automatic Inkjet Printing System with X/Y/R servo control system *1set. |
|
● Industrial PC, monitor, Keyboard, mouse *1set. |
|
● KGK printing head *1set. |
|
● CCD with Fiducial mark recognition function and barcode reading function. |
|
● PCB clamping device *1set |
|
● Light tower *1set |
|
● 1 year parts warranty |
|
|
|
Optional configuration: |
|
● Customized software to connect with customer MES system to load and unload the barcode from MES system. |
