Provides optimum productivity necessary for batch production by visibly improving three indicators of a chip mounter.
|
|
Flexible Production Highest Applicability of Medium Speed Chip Mounters to PCBs ● 510 x 510mm (standard) / 1500 x 460mm (optional) - Possible to produce PCBs of up to 1,500mm(L) x 460mm(W) in size. |
|
|
High Reliability Places Microchips Stably ● Performs automatic calibration during production to keep placement accuracy constant Maintains pickup and placement quality with the Nozzle Maintenance Unit. |
|
|
Productivity Highest Performance among Chip Mounters of the Same Class ● Increases the component recognition range using a high-pixel camera Increases simultaneous pickup rate and odd-shape component placement speed. |
|
|
Easy Operation Increases Operational Convenience ● Teaches a large odd-shape component easily and reduces teaching time Equipped with the function to unify the lighting level of chip components and maintains the pickup coordinates of common feeders. |
|
Fast & Flexible Mounter Decan S1 Features |
|
● Improving actual productivity. |
|
● Improves placement quality. |
|
● Reduces loss rate. |
|

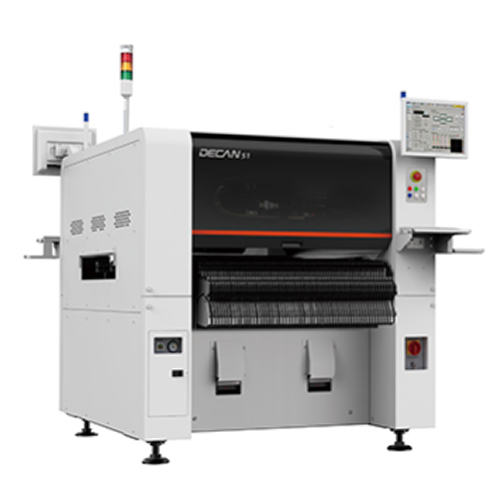

Fast & Flexible Mounter Decan S1 Specification: |
|||
|
Model |
Decan S1 |
||
|
Alignment: |
Fly Camera + Fix Camera |
||
|
The Number of Spindles: |
10 spindles x 1 Gantry |
||
|
Placement Speed (Optimum): |
47,000 CPH (Optimum) |
||
|
Placement Accuracy: |
Chip | ±28μm @ Cpk≥ 1.0 | |
| IC | ±35μm @ Cpk≥ 1.0 | ||
|
Component Range: |
Fly Camera | 03015 ~ □16mm | |
| Fix Camera | ~ □42mm (Standard) □42mm ~ □55mm (MFOV) L55mm ~ L75mm Connector (MFOV) | ||
| Max. Height | 10mm (Fly), 15mm (Fix) | ||
|
PCB Size (mm): |
Min. | 50(L) x 40(W) | |
| Max. | Standard | 510(L) x 510(W) | |
| Option | ~ Max. 1,500(L) x 460(W) | ||
|
PCB Thickness (mm): |
0.38 ~ 4.2 |
||
|
Feeder Capacity (8 mm Standard): |
Standard | 60ea / 56ea (Fixed feederbase / Docking Cart) | |
| Option | 120ea / 112ea (Fixed feederbase / Docking Cart) | ||
|
Utility: |
power | 3Phase AC200 / 208 / 220 / 240 / 380 / 415V Max. 3.5kVA | |
| Air Consumption | 5.0~7.0kgf/cm2 50Nℓ/min (Vacuum Pump) | ||
|
Weight (kg): |
Approx. 1,600 |
||
|
External Dimension (mm): |
1,430(L) x 1,740(D) x 1,485(H) |
||
